ECS-2033-060-AU ECS-2033-060-AU is a 6 MHz XO (standard) crystal oscillator with CMOS output, 3.3V supply, ±100ppm frequency stability, and an operating temperature range of -55°C to 125°C.
Mfr Part #:

ECS-2033-060-AU

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
ECS-2033-060-AU is a 6 MHz XO (standard) crystal oscillator with CMOS output, 3.3V supply, ±100ppm frequency stability, and an operating temperature range of -55°C to 125°C.
✓ Total Stock: 964 pcs
$ Price Range: $1.24 - $2.13

ECS-2033-060-AU Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
964 pcs
On Request
964 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-2033-060-AU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Length
Mounting Type
Operating Temperature
Output
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

ECS-2033-060-AU Description

Short technical summary and product information.

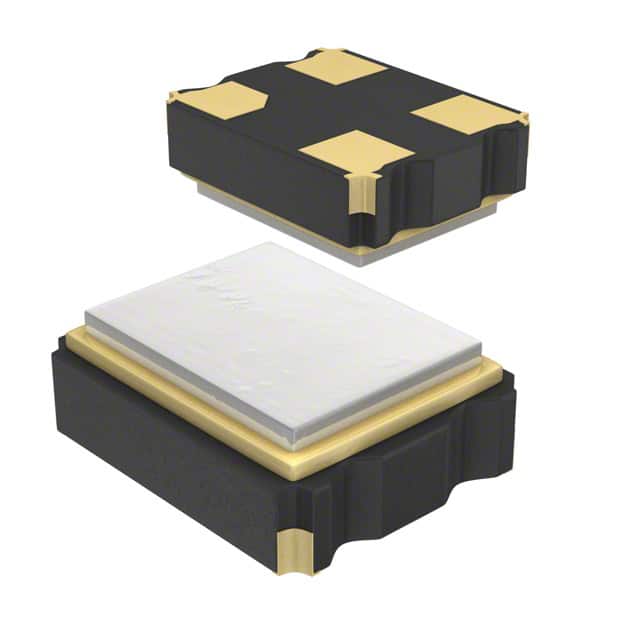

The ECS-2033-060-AU is a surface-mount clock oscillator from ECS Inc. It operates at a nominal frequency of 6 MHz with CMOS output logic. The device is designed for a supply voltage of 3.3V (3.135V to 3.465V range) and provides a frequency stability of ±100ppm over its full operating temperature range of -55°C to 125°C.



This oscillator features an enable/disable function and a typical supply current of 7 mA. It is housed in a compact 4-SMD, no-lead package measuring 2.50 mm x 2.00 mm x 0.90 mm, suitable for high-density PCB layouts. The part is RoHS3 compliant and lead-free.



Typical applications include use in industrial, automotive, and telecommunications equipment where a reliable 6 MHz clock source with wide temperature tolerance is required. The device is also available in tape and reel packaging for automated assembly.

ECS-2033-060-AU Quick Information

Product Type: Crystal Oscillator
Series: ECS-2033
Canonical Name: ECS-2033-060-AU 6 MHz XO (Standard) CMOS Oscillator
Subcategory: SMD Clock Oscillator

ECS-2033-060-AU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

ECS-2033-060-AU Estimated Pricing

Qty Low High
1+ $2.13 $2.13
10+ $1.85 $1.85
25+ $1.75 $1.75
50+ $1.68 $1.68
100+ $1.61 $1.61
250+ $1.52 $1.52
500+ $1.46 $1.46
1,000+ $1.40 $1.40
2,000+ $1.34 $1.34
3,000+ $1.31 $1.31
5,000+ $1.27 $1.27
7,000+ $1.24 $1.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

ECS-2033-060-AU Features

  • 6 MHz nominal frequency with CMOS output.
  • ±100ppm frequency stability over wide temperature range.
  • 3.3V supply voltage with 7 mA typical current.
  • Enable/disable function for power management.
  • Compact 2.5 x 2.0 mm SMD package.

ECS-2033-060-AU Applications

  • Provides clock signal for industrial control systems.
  • Suitable for automotive electronics requiring wide temperature range.
  • Used in telecommunications and networking equipment.
  • Ideal for high-density PCB designs.

ECS-2033-060-AU FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the ECS-2033-060-AU?

The operating temperature range is -55°C to 125°C.

What is the supply voltage for this oscillator?

The supply voltage is 3.3V typical, with a range of 3.135V to 3.465V.

Is the ECS-2033-060-AU RoHS compliant?

Yes, it is RoHS3 compliant and lead-free.

What is the package size of the ECS-2033-060-AU?

The package is 4-SMD, No Lead with dimensions 2.50 mm x 2.00 mm x 0.90 mm.

What is the frequency stability of this oscillator?

The frequency stability is ±100 ppm.
