| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging (First Year) | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Package Option | |
| Shunt Capacitance | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Width |

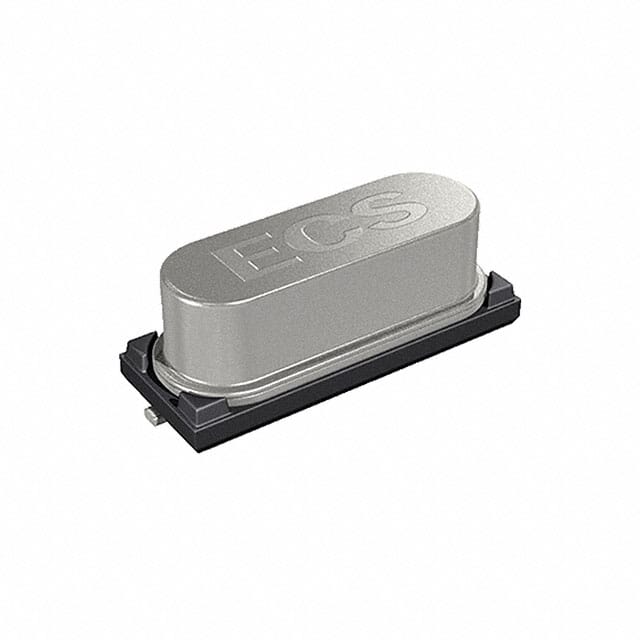

The ECS-200-20-5PX-TR is a 20 MHz quartz crystal from ECS Inc., part of the CSM-7X series. It operates in fundamental mode with a maximum ESR of 30 Ω. Frequency tolerance is ±30 ppm at +25°C, and frequency stability is ±50 ppm over -10°C to +70°C.
The crystal requires a 20 pF load capacitance and has a shunt capacitance of 7 pF typical. Maximum drive level is 500 μW. Aging is ±5 ppm in the first year. Storage temperature range is -55°C to +125°C.
The component is housed in a resistance weld metal HC-49/US package with dimensions 11.40 mm x 4.80 mm and a maximum height of 4.30 mm (5PX option). It is surface mountable and supplied in tape and reel packaging (1000 pieces per reel). The part is RoHS3 compliant, REACH unaffected, and MSL 1. This crystal is commonly used in electronic circuits requiring a precise clock source.
±30 ppm at +25°C.
-10°C to +70°C.
20 pF.
Yes, RoHS3 compliant.
HC-49/US surface mount package.
30 Ω.
±50 ppm over -10°C to +70°C.
