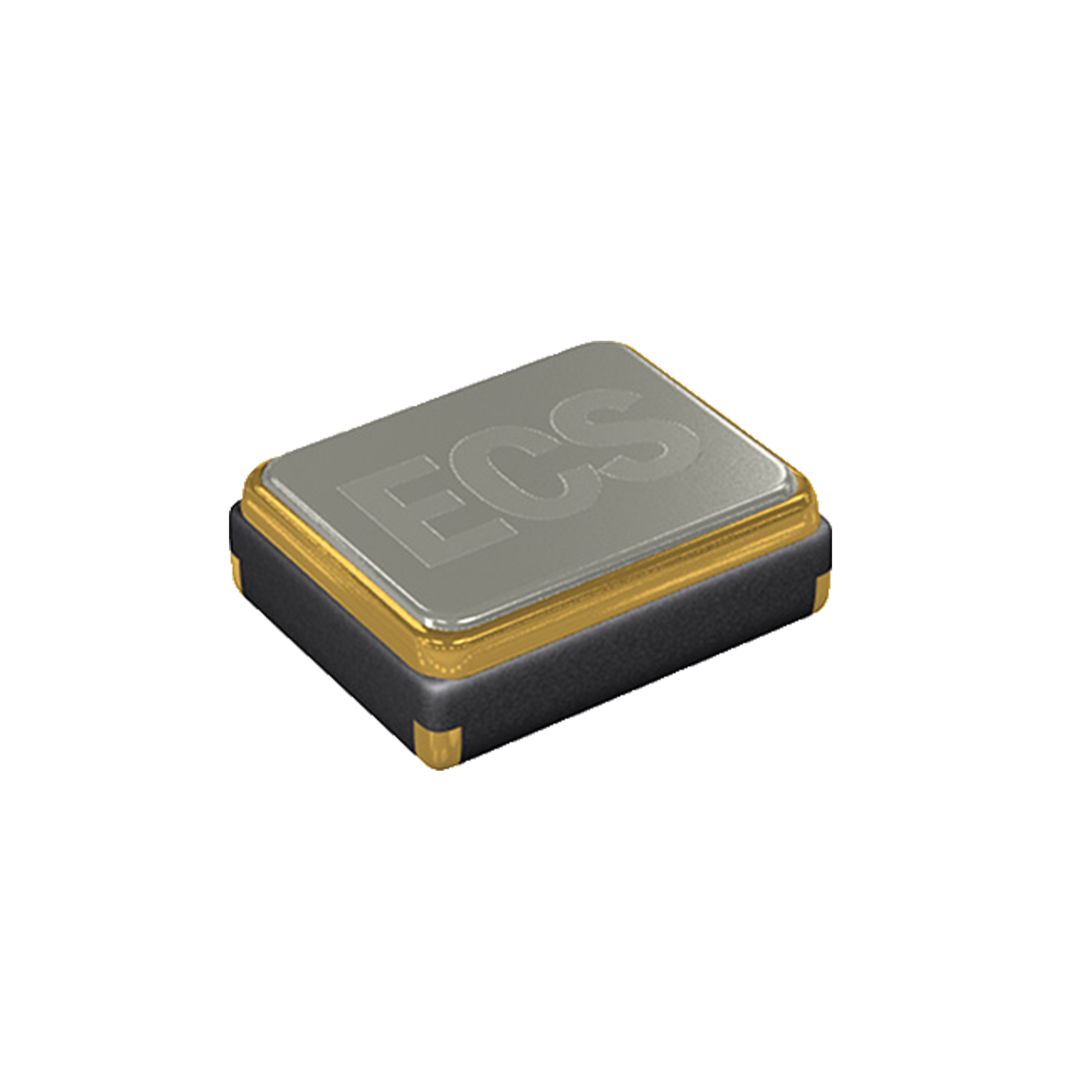

ECS-1633-240-BN-TR The ECS-1633-240-BN-TR is a 24MHz CMOS XO (standard) oscillator from ECS Inc. It features ±50ppm frequency stability, operates at 3.3V, and comes in a compact 4-SMD no lead package.
Mfr Part #:

ECS-1633-240-BN-TR

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
The ECS-1633-240-BN-TR is a 24MHz CMOS XO (standard) oscillator from ECS Inc. It features ±50ppm frequency stability, operates at 3.3V, and comes in a compact 4-SMD no lead package.
✓ Total Stock: 1,398 pcs

ECS-1633-240-BN-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,398 pcs
On Request
1398 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-1633-240-BN-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Length
Mounting Type
Operating Temperature
Operating Temperature Range
Output
Package / Case
Supply Current
Type
Voltage
Width
View Similar Products (0)

ECS-1633-240-BN-TR Description

Short technical summary and product information.

The ECS-1633-240-BN-TR is a surface-mount clock oscillator (XO) from ECS Inc. It operates at a frequency of 24 MHz with CMOS output logic. The oscillator offers a frequency stability of ±50 ppm over the extended temperature range of -40°C to +85°C. It requires a supply voltage of 3.3V (with a range of 3.135V to 3.465V) and typically draws 7 mA of supply current. The device includes an enable/disable function (tri-state control) and has a startup time of 10 ms maximum. The oscillator is housed in a compact 4-SMD no lead package measuring 2.00mm x 1.60mm x 0.90mm, suitable for high-density applications. It is RoHS3 compliant and has MSL 1 rating. This oscillator is ideal for use in various electronic systems requiring a precise clock source, such as microcontrollers, communication modules, and industrial controls.

ECS-1633-240-BN-TR Quick Information

Product Type: XO (Standard) Oscillator
Series: ECS-1633
Canonical Name: ECS-1633-240-BN-TR Oscillator
Subcategory: Clock Oscillator

ECS-1633-240-BN-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

ECS-1633-240-BN-TR Features

  • CMOS output with 24 MHz frequency.
  • ±50 ppm frequency stability over temperature.
  • 3.3V supply with 7 mA typical current.
  • Enable/disable function for power saving.
  • Compact 4-SMD no lead package.

ECS-1633-240-BN-TR Applications

  • Ideal for microcontroller clock generation.
  • Used in industrial control systems.
  • Suited for communication modules.
  • Applicable in high-density PCB designs.

ECS-1633-240-BN-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the ECS-1633-240-BN-TR?

The nominal supply voltage is 3.3V, with a range of 3.135V to 3.465V.

What is the package type for this oscillator?

It is a 4-SMD, No Lead package.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

Is the ECS-1633-240-BN-TR RoHS compliant?

Yes, it is RoHS3 compliant.

What is the frequency stability of this oscillator?

The frequency stability is ±50 ppm.

What output logic does the oscillator provide?

It provides CMOS output logic.

What is the typical supply current?

The typical supply current is 7 mA.
