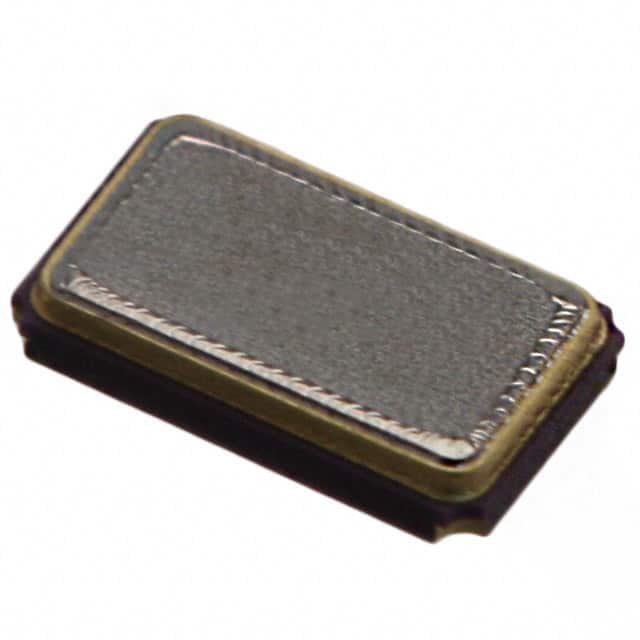

The ECS-160-9-42-CKM-TR from ECS Inc. is a 16 MHz quartz crystal resonator in a compact 4.0 x 2.5 x 0.8 mm ceramic SMD package. It features a fundamental mode of oscillation with a load capacitance of 9 pF, frequency tolerance of ±10 ppm, and frequency stability of ±10 ppm over the operating temperature range of -20°C to +70°C.
The crystal is housed in a 4-SMD, No Lead package suitable for automated surface mount assembly. With an equivalent series resistance (ESR) of 60 Ω maximum, it offers reliable performance in timing and clock generation circuits. The part is RoHS3 compliant and supplied in tape and reel packaging with 1000 pieces per reel.
Designed for wireless communications, portable electronics, and high-density applications, the ECX-42 series provides a low-profile footprint ideal for space-constrained designs. The package is symmetrical, with interchangeable input/output pads for flexible PCB layout.
The crystal oscillates at 16 MHz.
The load capacitance is 9 pF.
Both frequency tolerance and stability are ±10 ppm.
The operating temperature range is -20°C to +70°C.
It is available in a 4-SMD, No Lead surface mount package measuring 4.0 mm x 2.5 mm x 0.8 mm.
Yes, it is RoHS3 compliant and lead free.
