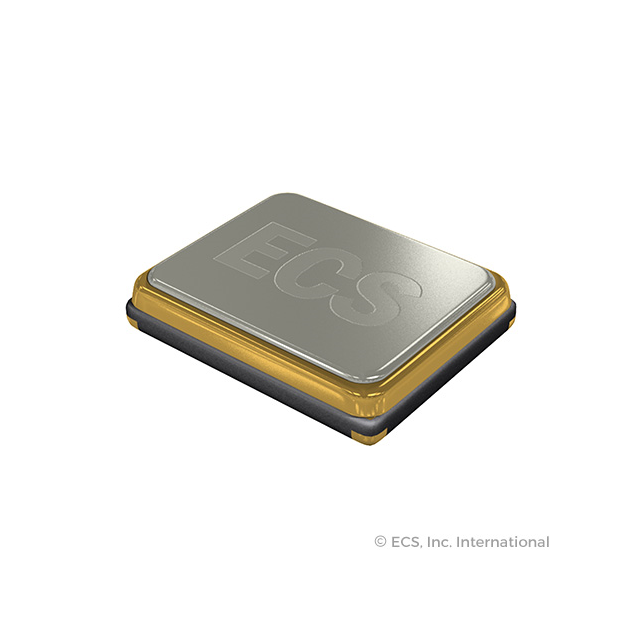

ECS-160-9-33B-CTP-TR Surface mount crystal oscillator with 16 MHz frequency, 9pF load capacitance, and ±10ppm tolerance. Suitable for wireless and IoT applications.
Mfr Part #:

ECS-160-9-33B-CTP-TR

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
Surface mount crystal oscillator with 16 MHz frequency, 9pF load capacitance, and ±10ppm tolerance. Suitable for wireless and IoT applications.
✓ Total Stock: 401 pcs

ECS-160-9-33B-CTP-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
401 pcs
On Request
401 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-160-9-33B-CTP-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Stability
Frequency Tolerance
Height
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Package / Case
Storage Temperature
Tape & Reel
Type
Width
View Similar Products (0)

ECS-160-9-33B-CTP-TR Description

Short technical summary and product information.

This is a 16 MHz quartz crystal in a compact 3.2x2.5x0.8 mm SMD package. It operates in fundamental mode with an equivalent series resistance of 60 ohms maximum.



The crystal offers a frequency tolerance of ±10 ppm at 25°C and frequency stability of ±20 ppm over the full operating temperature range of -40°C to +105°C. Load capacitance is 9 pF, and drive level is 200 μW maximum.



Designed for surface mount assembly, it features a 4-pad ceramic package with gold termination. The part is RoHS3 compliant and has MSL 1 rating. Typical applications include wireless modules, IoT devices, and Bluetooth Low Energy.

ECS-160-9-33B-CTP-TR Quick Information

Product Type: Crystal
Series: ECS-33B
Canonical Name: ECS Inc. ECS-160-9-33B-CTP-TR 16 MHz Crystal 9pF SMD
Subcategory: SMD Crystal

ECS-160-9-33B-CTP-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ECS-160-9-33B-CTP-TR Features

  • 16 MHz fundamental mode crystal.
  • 9 pF load capacitance for quick start-up.
  • ±10 ppm frequency tolerance at 25°C.
  • ±20 ppm stability over -40°C to 105°C.
  • Compact 3.2x2.5x0.8 mm SMD package.

ECS-160-9-33B-CTP-TR Applications

  • Ideal for IoT and wearable devices.
  • Used in Bluetooth Low Energy modules.
  • Suitable for smart home sensor applications.
  • Designed for wireless communication circuits.

ECS-160-9-33B-CTP-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40°C to 105°C

What is the load capacitance?

9 pF

What is the frequency tolerance?

±10 ppm

What is the package type?

4-SMD, No Lead

Is the crystal RoHS compliant?

Yes, RoHS3 compliant

What is the frequency?

16 MHz

What is the equivalent series resistance (ESR)?

60 Ω maximum
