| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
550 pcs
|
550 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Load Capacitance | |
| Mounting Type | |
| Operating Temperature |

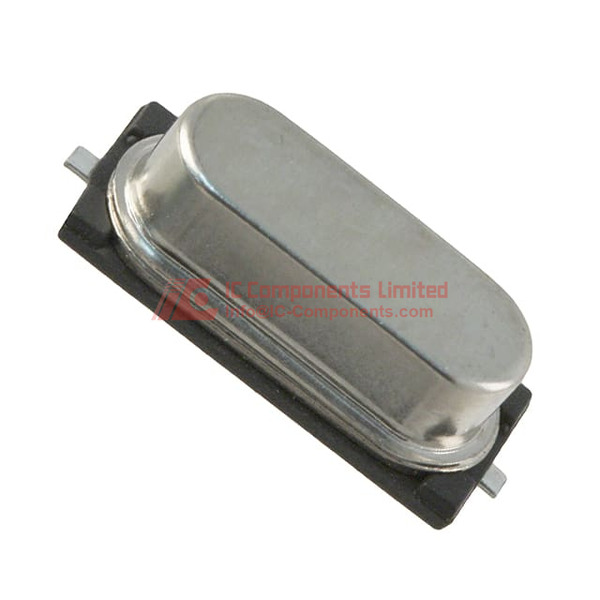

The ECS Inc. ECS-147.4-20-3X is a crystal oscillator component designed for electronic circuits requiring precise frequency generation. It operates at a nominal frequency of 14.7456 MHz with a frequency tolerance of ±30 ppm and a frequency stability of ±50 ppm.
This crystal has a load capacitance of 16 pF and an equivalent series resistance (ESR) of 30 Ohms. It is housed in an HC-49/US package and is designed for surface mount applications. The component's dimensions are 11.40mm in length and 4.80mm in width, with a maximum seated height of 4.10mm.
The operating temperature range for this crystal is -40°C to 85°C, making it suitable for a variety of environmental conditions. The RoHS status is reported as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14.7456 MHz.
16 pF.
-40°C to 85°C.
HC-49/US surface-mount package.
±30 ppm.
±50 ppm.
30 Ohms maximum.
