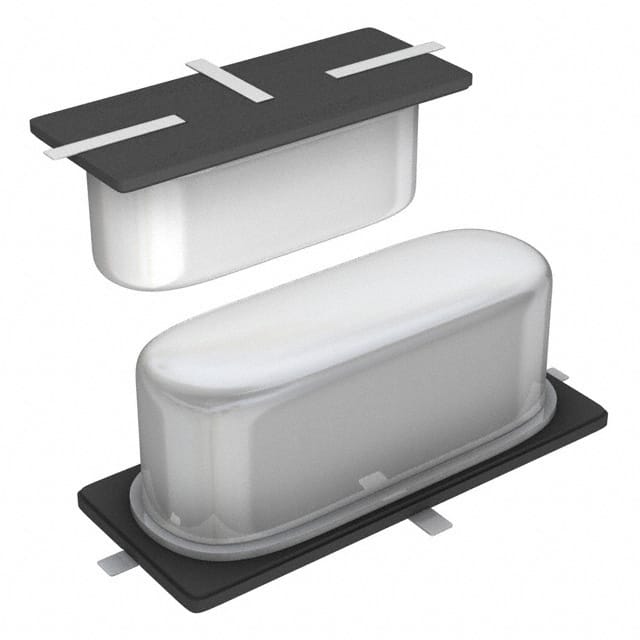

The ECS-122.8-20-5G3XDS-TR is a surface mount quartz crystal from ECS Inc., part of the CSM-7X-3L series. It is designed for general-purpose timing applications and comes in a compact HC-49/US (CSM-7X-3L) package with dimensions of 11.40 mm x 4.70 mm x 4.20 mm.
This crystal operates at a fundamental frequency of 12.288 MHz with a load capacitance of 20 pF. It features a frequency tolerance of ±30 ppm at +25°C and a frequency stability of ±100 ppm over the operating temperature range of -40°C to +125°C. The maximum equivalent series resistance (ESR) is 50 Ω. Drive level is limited to 500 µW, and shunt capacitance is typically 7 pF.
The component is RoHS compliant and has a storage temperature range of -55°C to +125°C. Aging is rated at ±5 ppm in the first year. It is supplied in tape and reel packaging (1,000 units per reel) and is MSL 1 rated.
This crystal is suitable for use in a wide range of electronic devices requiring precise timing, including microcontrollers, communication interfaces, and industrial control systems. Its extended temperature range allows for use in harsh environments.
