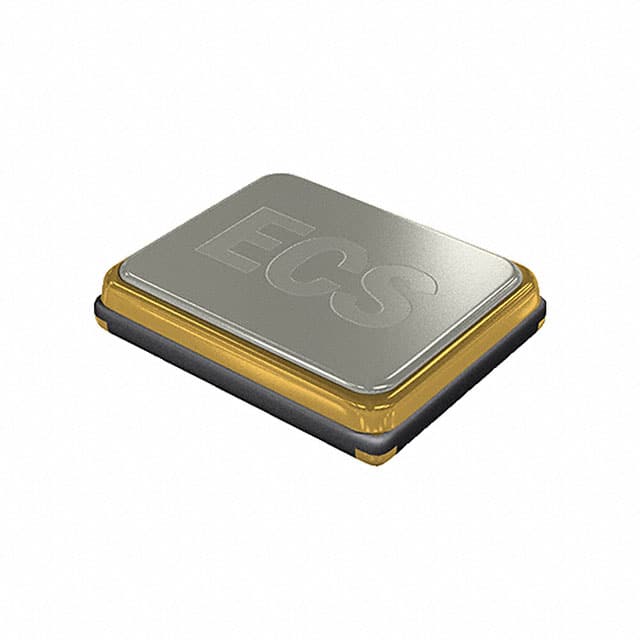

The ECS-120-S-20A-TR is a 12 MHz fundamental mode quartz crystal from ECS Inc., part of the CSM-8A series. It features a series resonant load capacitance and offers a frequency tolerance of ±30 ppm and stability of ±50 ppm over the -10°C to +70°C operating temperature range. The equivalent series resistance is 60 Ω maximum, with a drive level of 500 µW and shunt capacitance of 5 pF. This crystal is housed in a compact 7.00 mm x 5.00 mm surface-mount ceramic package (2-SMD, No Lead) with a low profile of 1.70 mm. It is RoHS3 compliant and suitable for applications requiring precise timing, such as microcontrollers, communication interfaces, and embedded systems. The part is supplied in tape and reel packaging for automated assembly.
12 MHz.
Series resonant (no external load capacitance required).
-10°C to +70°C.
7.00 mm x 5.00 mm surface mount, 2-SMD no lead.
Yes, RoHS3 compliant.
60 Ω maximum.
±50 ppm over -10°C to +70°C.
