ECS-120-20-3X-TR 12 MHz surface mount quartz crystal with 20 pF load capacitance, ±30 ppm frequency tolerance, and ±50 ppm stability over -10°C to +70°C.
Mfr Part #:

ECS-120-20-3X-TR

Available from 3 distributors
Mfr Name: ECS Inc.
ECS Inc.
12 MHz surface mount quartz crystal with 20 pF load capacitance, ±30 ppm frequency tolerance, and ±50 ppm stability over -10°C to +70°C.
✓ Total Stock: 4,819 pcs

ECS-120-20-3X-TR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
1,805 pcs
On Request
1805 pcs On Request 1 On Request On Request 22+ On Request On Request
Emiteli ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-120-20-3X-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Failure Rate
Frequency
Frequency Stability
Frequency Tolerance
Height
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Package / Case
Type
Width
View Similar Products (0)

ECS-120-20-3X-TR Description

Short technical summary and product information.

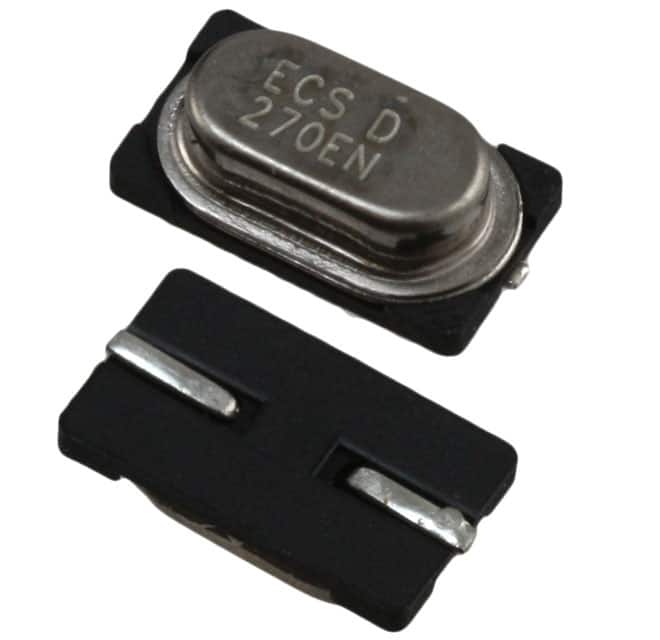

The ECS-120-20-3X-TR is a 12 MHz fundamental mode quartz crystal from ECS Inc.'s CSM-3X series. It offers a frequency tolerance of ±30 ppm at +25°C and frequency stability of ±50 ppm over the operating temperature range of -10°C to +70°C. The crystal is designed for a load capacitance of 20 pF and features a maximum equivalent series resistance (ESR) of 60 Ω.



This surface mount device is housed in a miniature low-profile HC-49/US package measuring 7.00 mm x 4.10 mm x 2.30 mm. It is supplied on tape and reel with a standard quantity of 3000 pieces per reel. The crystal is RoHS compliant and lead-free, with an MSL rating of 1 (unlimited).



Typical applications include timing circuits in consumer electronics, industrial controls, and communication equipment where a stable and reliable clock source is required. The CSM-3X series reduces footprint by 50% compared to the CSM-7X (HC-49USX SMD) package.

ECS-120-20-3X-TR Quick Information

Product Type: Quartz Crystal
Series: CSM-3X
Canonical Name: ECS Inc. CSM-3X Series 12 MHz Surface Mount Crystal
Subcategory: SMD Crystal

ECS-120-20-3X-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead Free

ECS-120-20-3X-TR Features

  • 12 MHz fundamental mode quartz crystal.
  • ±30 ppm frequency tolerance at +25°C.
  • ±50 ppm stability over -10°C to +70°C.
  • 20 pF load capacitance, 60 Ω max ESR.
  • RoHS compliant and lead-free.

ECS-120-20-3X-TR Applications

  • Timing reference for microcontroller circuits.
  • Clock generation in consumer electronics.
  • Frequency control in industrial equipment.
  • Used in communication interface modules.

ECS-120-20-3X-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of the ECS-120-20-3X-TR?

The frequency is 12 MHz.

What is the frequency tolerance?

±30 ppm at +25°C.

What is the load capacitance?

20 pF.

What is the operating temperature range?

-10°C to +70°C.

Is this crystal RoHS compliant?

Yes, it is RoHS3 compliant and lead-free.

What is the package type?

Surface mount HC-49/US package.

What is the maximum ESR?

60 Ω maximum for the 12 MHz frequency.
