| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,071 pcs
|
2071 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,071 pcs
|
2071 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging (First Year) | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Ratings | |
| Shunt Capacitance | |
| Type | |
| Width |

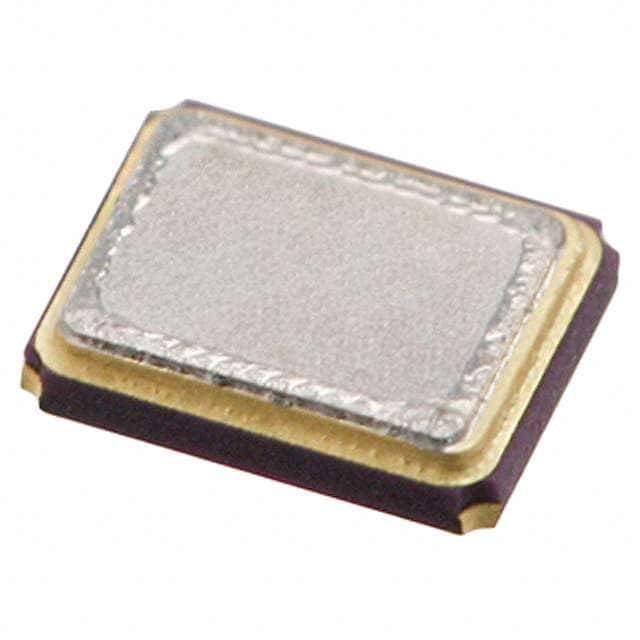

The ECS-120-18-33Q-DS is a 12.0000 MHz quartz crystal from ECS Inc., part of the ECX-33Q series. It operates in fundamental mode with a maximum equivalent series resistance (ESR) of 100 Ω. The crystal is designed for a load capacitance of 18 pF and offers a frequency tolerance of ±30 ppm at +25°C.
This crystal is AEC-Q200 qualified, making it suitable for automotive and other harsh environment applications. It features a frequency stability of ±100 ppm over the extended temperature range of -55°C to +125°C (DU option). The device is RoHS compliant and has a moisture sensitivity level (MSL) of 1.
Housed in a compact 4-SMD, no lead package measuring 3.20 mm x 2.50 mm with a low profile height of 0.80 mm, the ECS-120-18-33Q-DS is ideal for space-constrained designs. Its surface-mount construction supports automated assembly processes.
The nominal frequency is 12 MHz.
The load capacitance is 18 pF.
The operating temperature range is -40°C to +125°C.
Yes, it is RoHS3 compliant.
It comes in a 4-SMD, no lead package measuring 3.20 mm x 2.50 mm x 0.80 mm.
The frequency tolerance is ±30 ppm at +25°C.
Yes, it is AEC-Q200 qualified.
