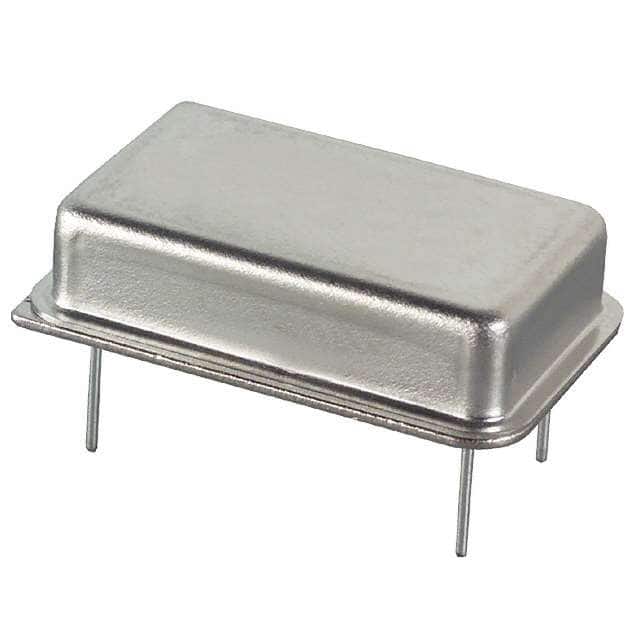

ECS-100AX-020 The ECS-100AX-020 is a 2 MHz TTL oscillator from ECS Inc. in a through-hole 14-DIP package. It operates at 5V with ±100ppm frequency stability.
Mfr Part #:

ECS-100AX-020

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
The ECS-100AX-020 is a 2 MHz TTL oscillator from ECS Inc. in a through-hole 14-DIP package. It operates at 5V with ±100ppm frequency stability.
✓ Total Stock: 2,336 pcs

ECS-100AX-020 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,336 pcs
On Request
2336 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-100AX-020 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Height
Length
Mounting Type
Operating Temperature
Operating Temperature Range
Output
Package / Case
Type
Voltage
Width
View Similar Products (0)

ECS-100AX-020 Description

Short technical summary and product information.

The ECS-100AX-020 is a 2 MHz clock oscillator from the ECS-100X series, manufactured by ECS Inc. It is a standard XO (crystal oscillator) with TTL output, designed for through-hole mounting in a 14-DIP metal can package. Key electrical characteristics include a nominal supply voltage of 5V (4.75V to 5.25V range), maximum input current of 15mA, and frequency stability of ±100ppm over all conditions. The operating temperature range is 0°C to 70°C, with storage from -55°C to +125°C. Output symmetry is 45% to 55% at 1.4V level, and rise/fall times are 10ns maximum. The output is capable of driving 10 TTL loads. The metal package with pin 7 case ground provides shielding to minimize radiation. This oscillator is RoHS3 compliant and REACH unaffected.

ECS-100AX-020 Quick Information

Product Type: XO (Standard) Oscillator
Series: ECS-100X
Canonical Name: ECS-100AX-020 Oscillator, 2 MHz, TTL, Through Hole
Subcategory: Through Hole Oscillator

ECS-100AX-020 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ECS-100AX-020 Features

  • 2 MHz TTL output clock oscillator.
  • Through-hole 14-DIP metal can package.
  • ±100ppm frequency stability over all conditions.
  • 5V supply voltage with 15mA max current.
  • Operating temperature range 0°C to 70°C.

ECS-100AX-020 Applications

  • General purpose clock generation in digital circuits.
  • Timing reference for microcontrollers and logic.
  • Suitable for industrial control systems.

ECS-100AX-020 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

4.75V to 5.25V, nominal 5V.

What is the package type?

14-DIP, 4 Leads (Full Size, Metal Can), through-hole.

What is the operating temperature range?

0°C to 70°C.

Is this component RoHS compliant?

Yes, RoHS3 compliant.

What is the frequency stability?

±100ppm (including temperature, voltage, load, aging).

What is the output logic type?

TTL.

What is the mounting type?

Through hole.
