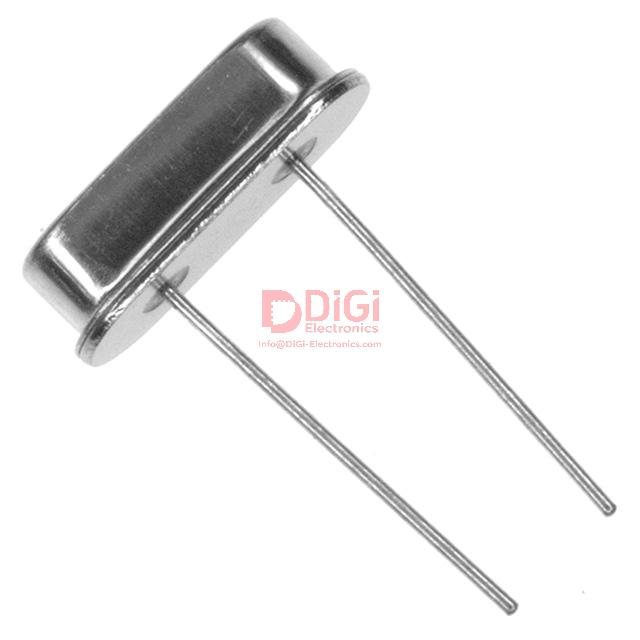

ECS-100-S-5P The ECS Inc. ECS-100-S-5P is a crystal with a frequency of 5 MHz. It is housed in an HC-49/US package and designed for through-hole mounting.
Mfr Part #:

ECS-100-S-5P

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
The ECS Inc. ECS-100-S-5P is a crystal with a frequency of 5 MHz. It is housed in an HC-49/US package and designed for through-hole mounting.
✓ Total Stock: 90 pcs
$ Price Range: $0.56

ECS-100-S-5P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-100-S-5P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Frequency Stability
Frequency Tolerance
Lead Style
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
View Similar Products (0)

ECS-100-S-5P Description

Short technical summary and product information.

This ECS Inc. crystal, part number ECS-100-S-5P, operates at a nominal frequency of 5 MHz. It offers a frequency tolerance of ±30ppm and a frequency stability of ±50ppm. The crystal is designed for fundamental mode operation and has an Equivalent Series Resistance (ESR) of 120 Ohms.



The component is suitable for a wide operating temperature range of -10°C to 70°C. It features a through-hole mounting type and comes in the HC-49/US package. The dimensions are 11.35mm in length and 4.65mm in width, with a maximum seated height of 3.50mm.



This crystal is part of the HC-49USX series. It is suitable for applications requiring stable frequency generation within its specified operating conditions.

ECS-100-S-5P Quick Information

Product Type: Crystal
Series: HC-49USX
Canonical Name: ECS Inc. ECS-100-S-5P Crystal
Subcategory: Crystals

ECS-100-S-5P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ECS-100-S-5P Estimated Pricing

Qty Low High
1+ $0.56 $0.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

ECS-100-S-5P Features

  • 5 MHz nominal frequency output.
  • ±30ppm frequency tolerance specification.
  • ±50ppm frequency stability rating.
  • HC-49/US package for through-hole mounting.
  • Operates from -10°C to 70°C.

ECS-100-S-5P Applications

  • Clock generation for microcontrollers.
  • Timing reference for embedded systems.
  • Frequency control in consumer electronics.
  • General purpose oscillator circuits.

ECS-100-S-5P FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating frequency of the ECS-100-S-5P crystal?

The operating frequency is 5 MHz.

What is the frequency tolerance of this crystal?

The frequency tolerance is ±30ppm.

What is the operating temperature range for the ECS-100-S-5P?

It operates within a temperature range of -10°C to 70°C.

What type of package does the ECS-100-S-5P use?

It uses the HC-49/US package.

How is the ECS-100-S-5P crystal mounted?

It is designed for through-hole mounting.
