ECS-100-20-5PXDU-TR Surface mount crystal resonator with 10 MHz frequency, 20 pF load capacitance, and ±30 ppm tolerance. Suitable for wide temperature range applications.
Mfr Part #:

ECS-100-20-5PXDU-TR

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
Surface mount crystal resonator with 10 MHz frequency, 20 pF load capacitance, and ±30 ppm tolerance. Suitable for wide temperature range applications.
✓ Total Stock: 2 pcs

ECS-100-20-5PXDU-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-100-20-5PXDU-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Stability
Frequency Tolerance
Height
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Storage Temperature
Tape & Reel
Type
Width
View Similar Products (0)

ECS-100-20-5PXDU-TR Description

Short technical summary and product information.

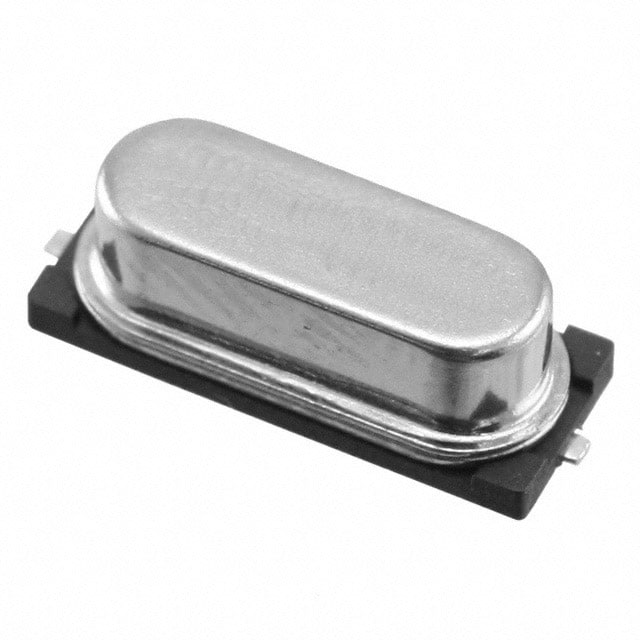

The ECS-100-20-5PXDU-TR is a surface mount quartz crystal resonator from ECS Inc. part of the CSM-7XDU series. It operates at a fundamental frequency of 10 MHz with a load capacitance of 20 pF.



This crystal offers a frequency tolerance of ±30 ppm at 25°C and a frequency stability of ±100 ppm over the full operating temperature range of -55°C to +125°C. Maximum equivalent series resistance (ESR) is 50 Ω. The drive level is limited to 500 µW.



The component is housed in a low-profile HC-49/US SMD package with dimensions 11.40 mm x 4.80 mm x 4.30 mm. It is supplied in tape and reel packaging. The device is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).

ECS-100-20-5PXDU-TR Quick Information

Product Type: Crystal
Canonical Name: ECS-100-20-5PXDU-TR - 10 MHz ±30ppm Crystal, 20pF Load, HC-49/US SMD
Subcategory: Crystal

ECS-100-20-5PXDU-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb Free/RoHS Compliant

ECS-100-20-5PXDU-TR Features

  • 10 MHz fundamental mode crystal.
  • ±30 ppm frequency tolerance at 25°C.
  • Wide operating temperature range -55°C to 125°C.
  • Surface mount package HC-49/US.
  • RoHS3 and REACH compliant.

ECS-100-20-5PXDU-TR Applications

  • Timing reference for industrial control systems.
  • Used in automotive electronics and sensors.
  • Suitable for high-reliability communications equipment.
  • Ideal for wide temperature range applications.

ECS-100-20-5PXDU-TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the package type of the ECS-100-20-5PXDU-TR?

The package is HC-49/US surface mount.

What is the operating temperature range of this crystal?

The operating temperature range is -55°C to +125°C.

Is the ECS-100-20-5PXDU-TR RoHS compliant?

Yes, it is RoHS3 compliant (Pb free).

What is the frequency tolerance of this crystal?

The frequency tolerance is ±30 ppm at +25°C.

What is the load capacitance of the ECS-100-20-5PXDU-TR?

The load capacitance is 20 pF.

What is the maximum ESR of this crystal?

The maximum equivalent series resistance is 50 Ω.
