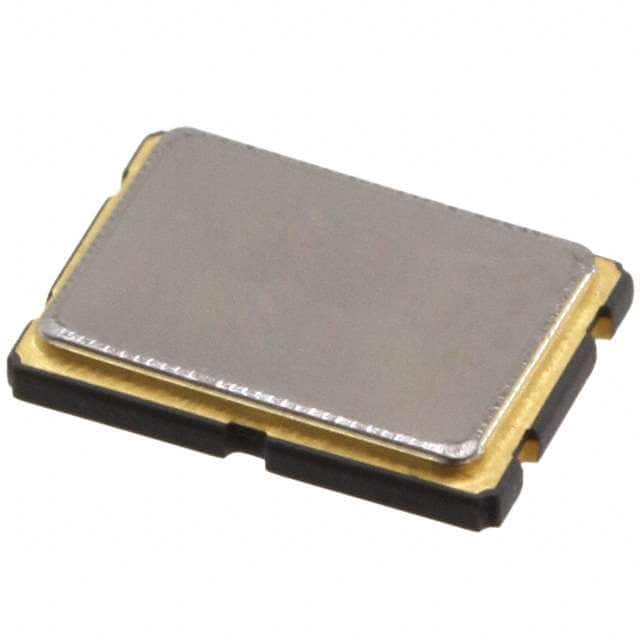

ECS-100-18-20BQ-DS 10 MHz surface mount crystal with 18pF load capacitance, ±30ppm frequency tolerance, and AEC-Q200 qualification.
Mfr Part #:

ECS-100-18-20BQ-DS

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
10 MHz surface mount crystal with 18pF load capacitance, ±30ppm frequency tolerance, and AEC-Q200 qualification.
✓ Total Stock: 341 pcs

ECS-100-18-20BQ-DS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
341 pcs
On Request
341 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-100-18-20BQ-DS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Stability
Frequency Tolerance
Height
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Operating Temperature Range
Package / Case
Ratings
Tape & Reel
Type
Width
View Similar Products (0)

ECS-100-18-20BQ-DS Description

Short technical summary and product information.

The ECS-100-18-20BQ-DS is a 10 MHz quartz crystal from ECS Inc., part of the CSM-8Q series. It operates in fundamental mode with a load capacitance of 18pF and features a frequency tolerance of ±30ppm and frequency stability of ±100ppm over the full temperature range.



This crystal is designed for surface mount assembly in a compact 7.0 x 5.0 mm 4-SMD No Lead package. It is AEC-Q200 qualified, making it suitable for automotive and other harsh environment applications. The operating temperature range spans -40°C to +125°C, with a maximum ESR of 60 Ω.



Additional electrical characteristics include a typical shunt capacitance of 7 pF, a maximum drive level of 100 µW, and aging of ±5 ppm in the first year. The component is RoHS3 compliant and rated MSL 1 for moisture sensitivity.

ECS-100-18-20BQ-DS Quick Information

Product Type: MHz Crystal
Canonical Name: ECS-100-18-20BQ-DS 10 MHz ±30ppm Crystal 18pF 4-SMD No Lead
Subcategory: SMD Crystal

ECS-100-18-20BQ-DS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

ECS-100-18-20BQ-DS Features

  • 10 MHz fundamental mode quartz crystal.
  • 18pF load capacitance with ±30ppm tolerance.
  • AEC-Q200 qualified for automotive applications.
  • Compact 7.0 x 5.0 mm SMD package.
  • RoHS3 compliant and MSL 1 rated.

ECS-100-18-20BQ-DS Applications

  • Automotive electronic control units (ECUs).
  • Industrial timing and clock generation.
  • Consumer electronics requiring stable frequency reference.
  • Communication modules and embedded systems.

ECS-100-18-20BQ-DS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of the ECS-100-18-20BQ-DS crystal?

The frequency is 10 MHz.

What is the load capacitance of this crystal?

The load capacitance is 18 pF.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

Is this crystal RoHS compliant?

Yes, it is RoHS3 compliant.

What package does the ECS-100-18-20BQ-DS come in?

It comes in a 4-SMD, No Lead surface mount package.

What is the frequency tolerance of this crystal?

The frequency tolerance is ±30 ppm.

Is this crystal qualified for automotive applications?

Yes, it is AEC-Q200 qualified.
