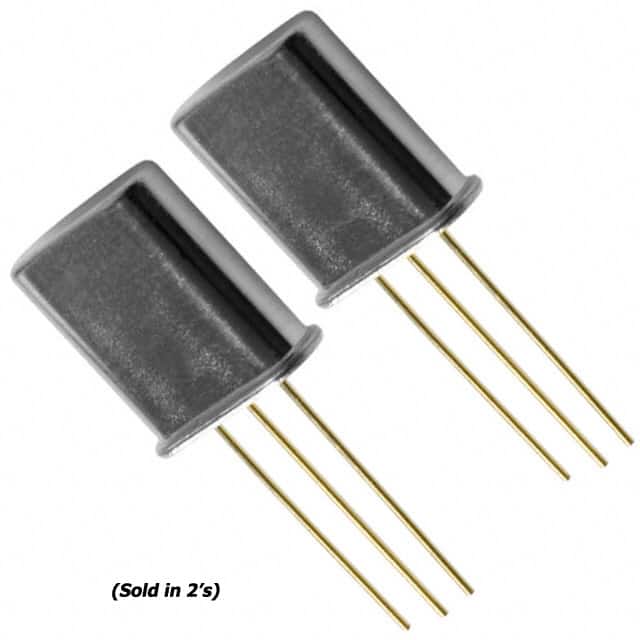

ECS-10.7-7.5B The ECS-10.7-7.5B is a 4-pole monolithic crystal filter with a center frequency of 10.7 MHz and 7.5 kHz bandwidth. It features 2.5 dB insertion loss and 1 dB ripple, in a through-hole HC-49/U package.
Mfr Part #:

ECS-10.7-7.5B

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
The ECS-10.7-7.5B is a 4-pole monolithic crystal filter with a center frequency of 10.7 MHz and 7.5 kHz bandwidth. It features 2.5 dB insertion loss and 1 dB ripple, in a through-hole HC-49/U package.
✓ Total Stock: 463 pcs
$ Price Range: $3.39 - $6.24

ECS-10.7-7.5B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
463 pcs
On Request
463 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-10.7-7.5B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Conflict Minerals
Frequency
Height (Max)
Impedance
Insertion Loss
Length
Mounting Type
Number of Poles
Operating Temperature
Ripple
Width
View Similar Products (0)

ECS-10.7-7.5B Description

Short technical summary and product information.

The ECS-10.7-7.5B is a monolithic crystal filter designed for frequency selection in IF stages and communication systems. It operates at a center frequency of 10.7 MHz with a bandwidth of 7.5 kHz, providing 2.5 dB insertion loss and 1 dB ripple. The filter has a 1.8 kΩ impedance and uses 4 poles for sharp selectivity.



This component is housed in a through-hole HC-49/U package with dimensions of 11.10mm x 4.70mm x 11.20mm. It is rated for operating temperatures from -20°C to 70°C, making it suitable for a wide range of environments. The filter is RoHS3 compliant (unverified) and has an MSL of Level 1.



Typical applications include IF filtering in FM receivers, communication equipment, and other RF circuits requiring narrowband filtering. The through-hole mounting allows for easy integration into prototype and production boards.

ECS-10.7-7.5B Quick Information

Product Type: Monolithic Crystal Filter
Canonical Name: ECS-10.7-7.5B Monolithic Crystal Filter, 10.7 MHz, 7.5 kHz Bandwidth
Subcategory: Monolithic Crystal Filter

ECS-10.7-7.5B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ECS-10.7-7.5B Estimated Pricing

Qty Low High
1+ $6.24 $6.24
10+ $5.09 $5.09
25+ $4.70 $4.70
50+ $4.42 $4.42
100+ $4.16 $4.16
300+ $3.77 $3.77
500+ $3.61 $3.61
1,000+ $3.39 $3.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

ECS-10.7-7.5B Features

  • 10.7 MHz center frequency with 7.5 kHz bandwidth.
  • 4-pole design for sharp selectivity.
  • 2.5 dB insertion loss and 1 dB ripple.
  • Through-hole HC-49/U package for easy mounting.
  • Operating temperature range -20°C to 70°C.

ECS-10.7-7.5B Applications

  • IF filtering in FM radio receivers.
  • Narrowband filtering in communication systems.
  • Frequency selection in RF circuits.
  • Used in prototype and production boards.

ECS-10.7-7.5B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the center frequency of the ECS-10.7-7.5B?

The center frequency is 10.7 MHz.

What is the bandwidth of this filter?

The bandwidth is 7.5 kHz.

What is the insertion loss?

The insertion loss is 2.5 dB.

What is the package type?

The package is HC-49/U, through-hole mounting.

What is the operating temperature range?

The operating temperature range is -20°C to 70°C.

Is this component RoHS compliant?

It is listed as RoHS3 Compliant, but this is unverified.

How many poles does the filter have?

The filter has 4 poles.
