| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
112 pcs
|
112 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging (First Year) | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package Code | |
| Shunt Capacitance | |
| Storage Temperature | |
| Type | |
| Width | |
| package_size |

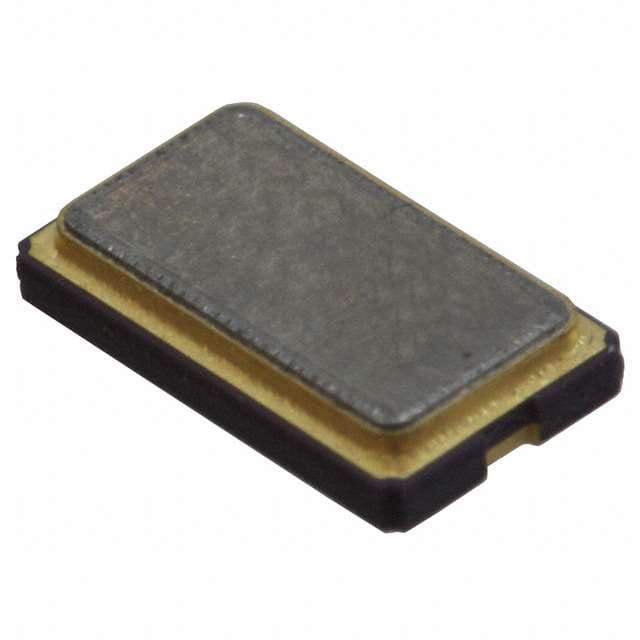

The ECS-080-18-23A-JGN-TR is an 8 MHz fundamental mode quartz crystal from ECS Inc., part of the ECX-64A series. It features a frequency tolerance of ±20ppm at +25°C and frequency stability of ±30ppm over -10°C to +70°C. The operating temperature range is -40°C to 85°C, making it suitable for extended temperature environments.
The crystal has a load capacitance of 18pF and a maximum equivalent series resistance (ESR) of 80Ω. It is designed for surface mount assembly in a compact 6.00mm x 3.50mm package with a low profile height of 1.10mm, ideal for densely populated PCBs.
This crystal is RoHS3 and REACH compliant with MSL 1 unlimited. It is commonly used in microcontrollers, communication devices, and other digital circuits requiring a precise and stable clock source.
8 MHz.
18 pF.
±20 ppm at +25°C.
±30 ppm over -10°C to +70°C.
-40°C to 85°C.
6.00mm x 3.50mm SMD.
Yes, RoHS3 compliant.
