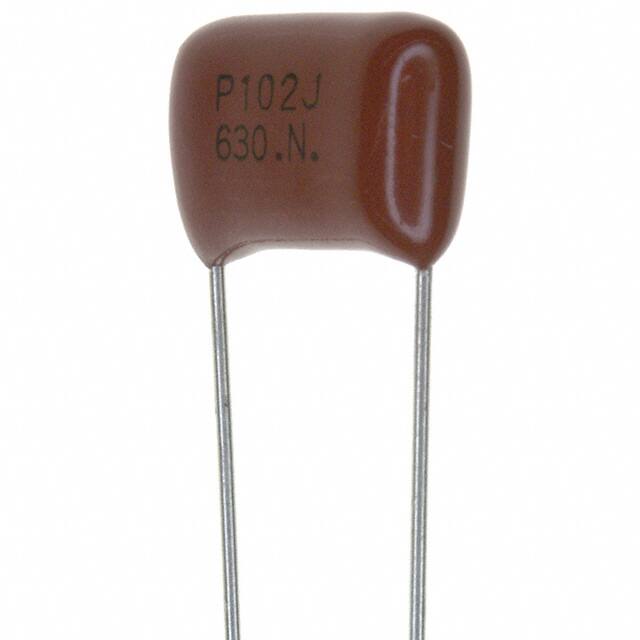

The Panasonic ECQ-P6102JU is a polypropylene film capacitor from the ECQ-P(U) series. It features a nominal capacitance of 1000 pF with ±5% tolerance and a DC voltage rating of 630 V. The capacitor uses a polypropylene dielectric with non-inductive construction and is encapsulated in a flame retardant epoxy resin coating.
Key electrical characteristics include a maximum dissipation factor of 0.1% at 20 °C and 1 kHz, minimum insulation resistance of 45000 MΩ at 20 °C and 100 VDC for 60 seconds, and a withstand voltage of 1575 VDC between terminals for 1 to 5 seconds. The operating temperature range is -40 °C to 105 °C, with voltage derating above 85 °C.
The capacitor is supplied in a radial through-hole package with crimped leads and a lead spacing of 10.00 mm. The body dimensions are 14.50 mm length, 5.00 mm width, and 10.50 mm height. It is suitable for high frequency, switching, and high pulse/dV/dt applications.
The capacitance is 1000 pF with a tolerance of ±5%.
The rated DC voltage is 630 V.
The dielectric material is polypropylene (PP).
The operating temperature range is -40°C to 105°C.
The capacitor is in a radial package for through-hole mounting with PC pin termination.
Yes, it is RoHS3 compliant per the datasheet.
It is suitable for high frequency and switching circuits, as well as high pulse and dV/dt applications.
