| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
130 pcs
|
130 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Standard Package Quantity | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstand Voltage |

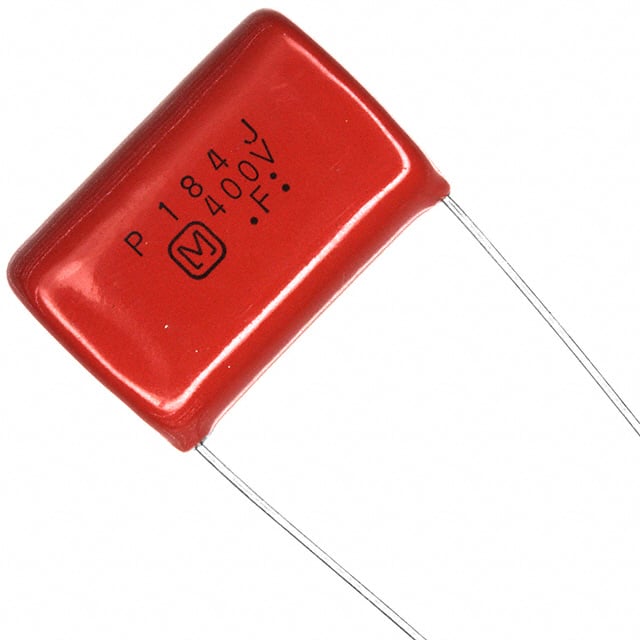

The Panasonic ECQ-P4184JU is a polypropylene film capacitor from the ECQP(U) series, offering a capacitance of 0.18 µF with ±5% tolerance and a rated voltage of 400 VDC. It features non-inductive construction with a flame retardant epoxy resin coating, ensuring low loss and excellent frequency characteristics.
This capacitor is designed for high frequency and high current circuits, as well as general purpose applications. It has a dissipation factor of ≤0.1% at 20°C and 1 kHz, and a minimum insulation resistance of 45000 MΩ at 20°C and 100 VDC for 60 seconds. The dielectric withstand voltage is 1000 VDC (250% of rated voltage) between terminals for 1 to 5 seconds.
The component is housed in a radial package with a lead spacing of 25.00 mm and dimensions of 29.50 mm length, 10.50 mm width, and 20.00 mm height. It operates over a temperature range of -40°C to +105°C, with derating required above 85°C. For this capacitance value at 400 VDC, the derated voltage is 370 VDC at 85°C.
The capacitance is 0.18 µF with a tolerance of ±5%.
The rated voltage is 400 VDC. At 85°C, derating applies, reducing the voltage to 370 VDC for this capacitance value.
The dielectric material is Polypropylene (PP).
The capacitor comes in a radial through-hole package with PC pin termination and a lead spacing of 25.00 mm.
The operating temperature range is -40°C to +105°C.
Dissipation factor is ≤0.1% at 20°C and 1 kHz. Insulation resistance is ≥45000 MΩ at 20°C and 100 VDC for 60 seconds.
