| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Category Temperature Range | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Standard Package Quantity | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstand Voltage |

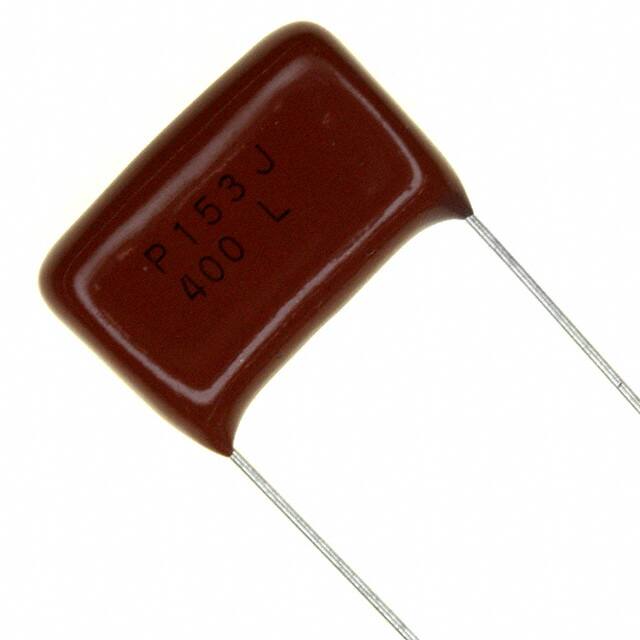

The Panasonic ECQ-P4153JU is a polypropylene film capacitor from the ECQ-P(U) series, designed with non-inductive construction and flame retardant epoxy resin coating.
This capacitor offers a capacitance of 0.015 µF with ±5% tolerance and a rated voltage of 400 VDC. It features a low dissipation factor of ≤0.1% at 1 kHz, high insulation resistance of ≥45000 MΩ, and an operating temperature range of -40°C to +105°C.
Targeted applications include high frequency and high current circuits, switching power supplies, and general purpose circuits requiring low loss and excellent frequency characteristics.
The device is packaged in a radial through-hole configuration with PC pin terminations and a lead spacing of 15.00 mm. Dimensions are 19.50 mm length, 6.00 mm width, and 13.50 mm height.
0.015 µF.
400 VDC.
Polypropylene (PP).
±5%.
Through-hole radial package with 15.00 mm lead spacing.
-40°C to +105°C including temperature rise on unit surface.
Yes, the datasheet states RoHS directive compliance.
