| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Package Style | |
| Packaging Type | |
| Rated Voltage | |
| Recommended Applications | |
| Standard Package Quantity | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstand Voltage |

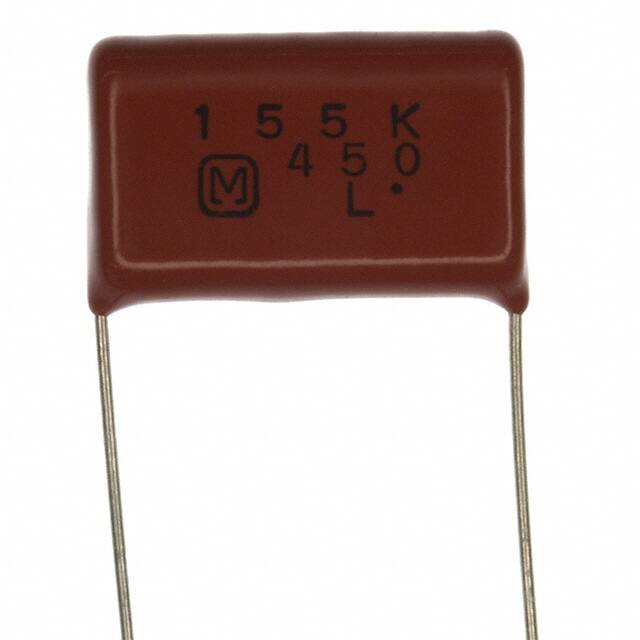

The Panasonic ECQ-E2W155KH is a metallized polyester film capacitor from the ECQE(H) series. It features a non-inductive wound construction with self-healing properties and a flame retardant epoxy resin coating. The capacitor is rated at 1.5 µF capacitance with ±10% tolerance and a DC voltage rating of 450 V. It operates over a temperature range of -40°C to +105°C with derating above 85°C. Key electrical characteristics include a dissipation factor of ≤1.0% at 1 kHz and an insulation resistance of ≥3000 MΩ·µF (for C>0.33 µF). The capacitor can withstand 675 VDC for 60 seconds between terminals. It is packaged in a radial leaded form with 22.5 mm lead spacing and bulk packaging of 100 pieces per pack. The component is RoHS3 compliant. Per the datasheet, this capacitor is intended for active filter circuit applications after full wave rectification.
1.5 µF.
450 VDC.
Metallized polyester.
±10%.
Radial leaded through-hole.
-40°C to 105°C.
Yes, RoHS3 compliant.
