| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,900 pcs
|
10900 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

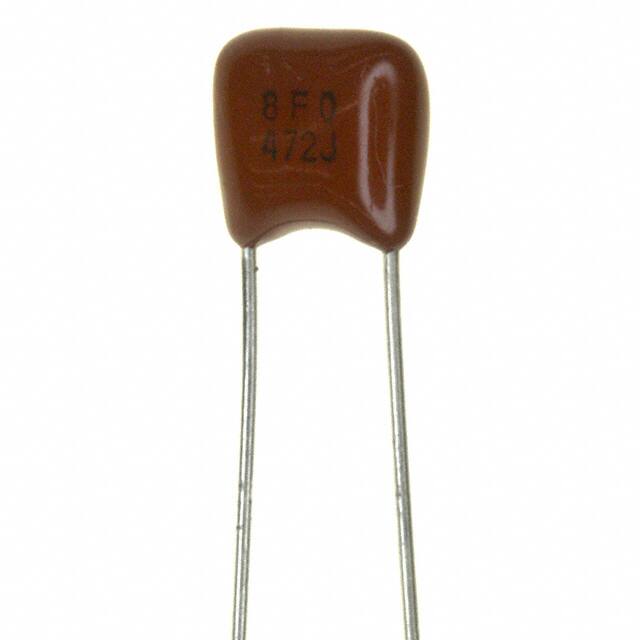

The Panasonic ECQ-B1H472JF is a polyester film capacitor from the ECQ-B(F) series, designed for general-purpose applications requiring stable capacitance and reliable performance. It offers a capacitance of 4700 pF with a tolerance of ±5% and a DC voltage rating of 50V.
This capacitor features a radial through-hole package with a lead spacing of 5.00mm and PC pin termination, making it suitable for high-density insertion on printed circuit boards. It operates over a temperature range of -40°C to +105°C, with a dissipation factor of ≤0.8% at 20°C and 1 kHz.
The ECQ-B1H472JF is RoHS compliant and has an MSL of 1 (unlimited). It is ideal for use in coupling, decoupling, bypass, and filtering circuits in consumer electronics, industrial controls, and other general-purpose applications.
The capacitance is 4700 pF with a tolerance of ±5%.
The DC voltage rating is 50V.
The dielectric material is polyester.
It comes in a radial through-hole package with PC pin termination and 5.00mm lead spacing.
The operating temperature range is -40°C to +105°C.
