| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,695 pcs
|
5695 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Tape & Reel | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating DC | |
| Width | |
| Withstand Voltage |

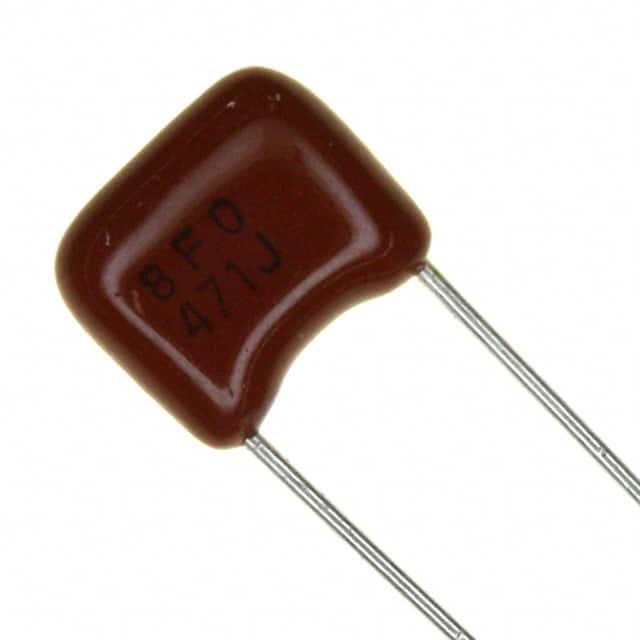

The Panasonic ECQ-B1H471JF is a polyester film capacitor from the ECQB(F) series. It has a capacitance of 470 pF with a tolerance of ±5% and a DC voltage rating of 50 V. The capacitor is designed for general purpose applications and features non-inductive construction for stable performance. Key electrical characteristics include a maximum dissipation factor of 0.8% at 20°C and 1 kHz, a minimum insulation resistance of 30000 MΩ at 50 VDC for 60 seconds, and a withstand voltage of 125 VDC (250% of rated voltage).
The capacitor is packaged in a radial through-hole configuration with PC pin terminations and a lead spacing of 5.00 mm. Its dimensions are 7.00 mm in length and height, and 3.00 mm in width. The operating temperature range is -40°C to +105°C, with derating above 85°C. The component is RoHS compliant as per the datasheet.
This film capacitor is suitable for DC blocking, coupling, bypass, and timing circuits in consumer electronics, industrial equipment, and other general purpose electronic assemblies. The radial package allows for easy insertion on printed circuit boards.
470 pF.
50 VDC.
Polyester.
±5%.
Radial through-hole with PC pins and 5mm lead spacing.
-40°C to 105°C.
0.8% maximum at 20°C, 1 kHz.
