| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,900 pcs
|
3900 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Category Temperature Range | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Quantity | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstand Voltage |

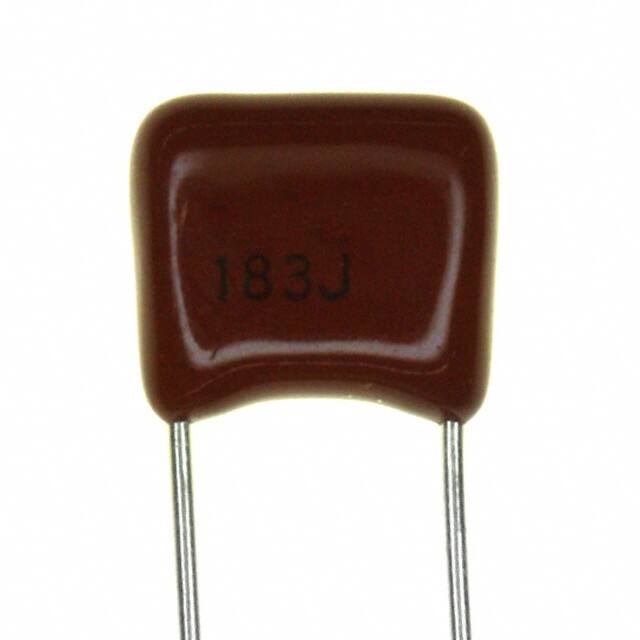

The Panasonic ECQ-B1H183JF is a general-purpose polyester film capacitor from the ECQ-B(F) series. It offers a capacitance of 0.018 µF with a ±5% tolerance and a rated voltage of 50 VDC. This capacitor features non-inductive construction for excellent electrical characteristics and is designed for high-density insertion applications.
The component operates over a category temperature range of -40°C to +105°C, with derating of the rated voltage by 2.5% per °C above 85°C. It has a maximum dissipation factor of 0.8% at 20°C and 1 kHz, and a minimum insulation resistance of 30000 MΩ for capacitance values up to 0.33 µF. The withstand voltage is 250% of rated voltage applied for 1 to 5 seconds between terminals.
It is supplied in a radial package with PC pin termination and 5.00 mm lead spacing. Bulk packaging contains 100 pieces per bag. The part is RoHS directive compliant and is suitable for general-purpose applications.
0.018 µF.
50 VDC.
±5%.
Polyester.
Radial through hole with 5.00 mm lead spacing and PC pins.
-40°C to +105°C.
Maximum 0.8% at 20°C and 1 kHz.
