| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

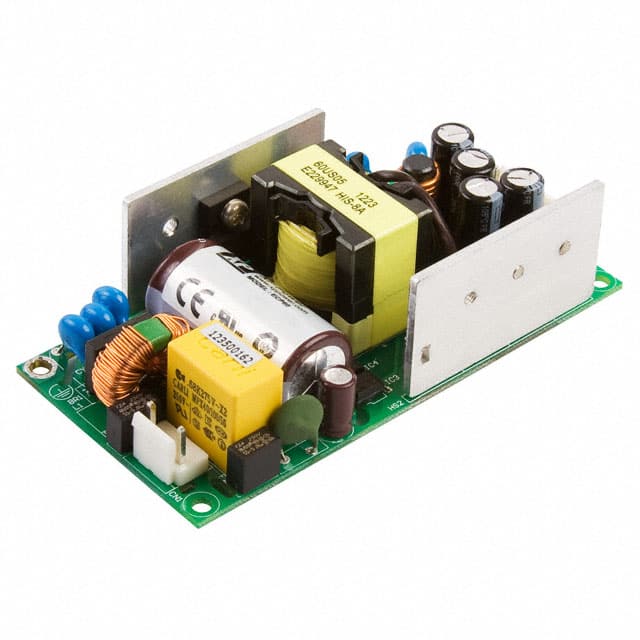

The XP Power ECP60UT04 is a versatile 60W AC-DC converter designed for various applications, including ITE (Commercial) and Medical. It features an open frame construction with a chassis mount for easy integration.
This converter operates with a universal input voltage range of 85-264 VAC and offers three outputs: 5V, 24V, and -12V. Key electrical specifications include an efficiency of 88% typical at full load, a low no-load input power of less than 0.5W, and comprehensive protection features such as overvoltage, overload, and short circuit protection.
The mechanical design includes dimensions of 4.00" x 2.00" x 1.20" (101.6mm x 50.8mm x 30.5mm). The operating temperature range is -20°C to +70°C with derating. Safety approvals include UL62368-1, IEC62368-1, EN62368-1, and compliance with relevant EMC standards like EN55011/32.
The ECP60UT04 provides three outputs: 5V, 24V, and -12V.
-20°C to +70°C with derating above 50°C.
101.6 x 50.8 x 30.5 mm (4.00 x 2.00 x 1.20 inches), chassis mount open frame.
UL62368-1, IEC62368-1, EN62368-1, ANSI/AAMI ES 60601-1, IEC60601-1, EN60601-1, CE, UKCA.
85-264 VAC.
88% typical at 230 VAC full load.
Overvoltage protection on V1 (115-140%), overload protection (120-160%), and short circuit hiccup mode.
