| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage |

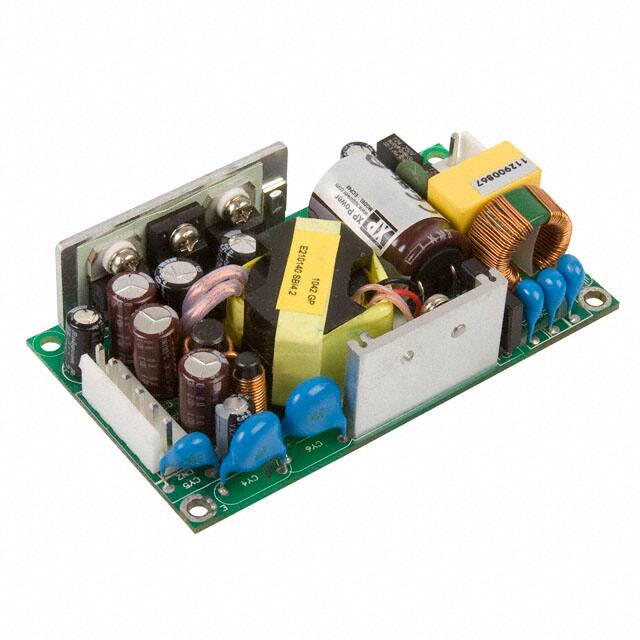

The XP Power ECP40UD02 is a 40-watt AC-DC power supply converter from the ECP series. It offers a universal input voltage range of 85-264 VAC and provides dual outputs, typically configured for 5V and 15V.
Designed with a low profile and ultra-compact size, this converter features an open frame construction and chassis mount type. It is suitable for applications requiring IT and Medical approvals, boasting features like <0.3W no-load input power and peak load capability. The unit operates within a temperature range of -10°C to +70°C with derating.
Key electrical specifications include a 1.5A current rating, 90% efficiency, and comprehensive protection features such as overvoltage, overload, and short circuit protection. Isolation ratings are 4000 VAC (input to output), 1500 VAC (input to ground), and 500 VAC (output to ground). Compliance is met with standards like EN55032 Level B emissions and UL/IEC/EN62368-1 safety approvals.
The input voltage range is 85-264 VAC at 47-63 Hz.
The ECP40UD02 provides dual outputs of 5V and 15V.
The operating temperature range is -10°C to +70°C, with derating from 100% load at 50°C to 50% load at 70°C.
Isolation ratings are 4000 VAC input-to-output, 1500 VAC input-to-ground, and 500 VAC output-to-ground.
The ECP40UD02 is approved to UL62368-1, IEC62368-1, EN62368-1, ANSI/AAMI ES 60601-1, IEC60601-1, EN60601-1, CE and UKCA.
The efficiency is 90%.
The ECP40UD02 is an open-frame converter measuring 88.9mm x 50.8mm x 26.0mm and is designed for chassis mounting.
