| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Range | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

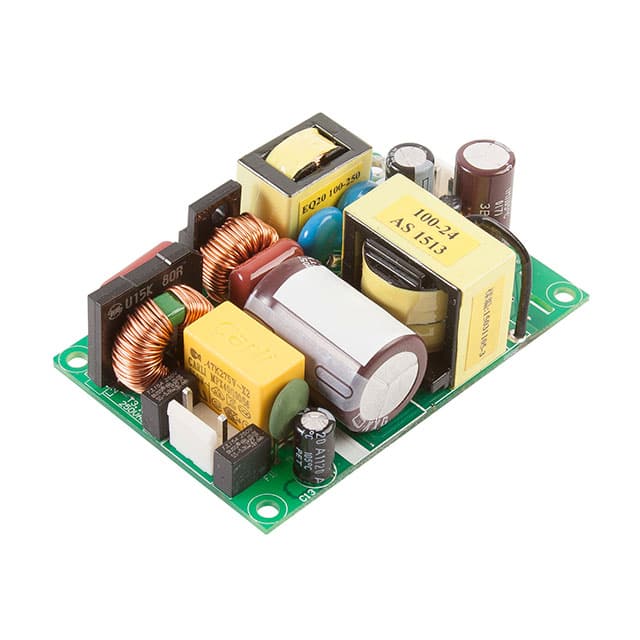

The XP Power ECP130PS12 is an open-frame AC-DC power supply designed for efficiency and reliability. It provides a 12V output with a convection-cooled rating of 100W, expandable to 130W with forced air cooling.
This power supply boasts a high efficiency of up to 95% and a low no-load input power of less than 0.5W, facilitating compliance with environmental legislation. It operates within a wide temperature range of -30°C to 70°C with derating and features robust electrical specifications including ±0.5% line and load regulation.
Approved for both ITE (Commercial) and Medical applications, the ECP130PS12 meets stringent safety standards such as IEC62368-1 and IEC60601-1. Its compact dimensions of 3.00" x 2.00" x 1.10" make it suitable for space-constrained designs. The unit includes features like PFC, standby output, and universal input, along with low leakage currents required for medical applications.
85-264 VAC universal input.
12VDC output at 8.33A (100W nominal, 130W forced air).
Up to 95% at 230 VAC; 93% typical at full load.
-30°C to 70°C with derating.
ITE: IEC62368-1, UL62368-1, CSA C22.2 No.62368-1, EN62368-1, LVD. Medical: IEC60601-1 Ed3.1 including Risk Management, ANSI/AAMI ES60601-1, CSA C22.2 No.6061-1, EN60601-1.
Open frame chassis mount.
4 kV.
