| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

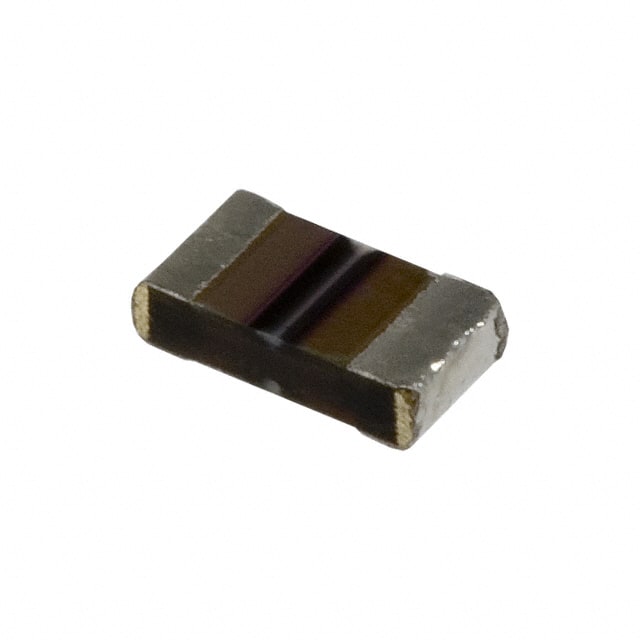

The Panasonic ECP-U1C684MA5 is a surface-mount film capacitor featuring a metallized acrylic stacked dielectric. It offers a capacitance of 0.68µF with a tolerance of ±20% and a DC voltage rating of 16V. The component is housed in a compact 1206 (3216 metric) package measuring 3.20mm x 1.60mm x 1.60mm, with solder pad terminations for reliable SMD assembly.
This capacitor is designed for EMI and RFI suppression applications, where its low ESR characteristic helps reduce high-frequency noise. The operating temperature range spans -40°C to +85°C, making it suitable for a wide variety of commercial and industrial environments.
The acrylic dielectric and stacked construction provide stable capacitance over temperature and frequency, while the metallized electrodes offer self-healing properties. The part is RoHS3 compliant and has an MSL of 1 (unlimited floor life), simplifying handling and storage.
The capacitance is 0.68 µF.
The DC voltage rating is 16V.
The tolerance is ±20%.
The dielectric is acrylic, metallized - stacked.
The package is 1206 (3216 Metric).
