| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Capacitance | |
| Diameter | |
| ESR (Equivalent Series Resistance) | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance |

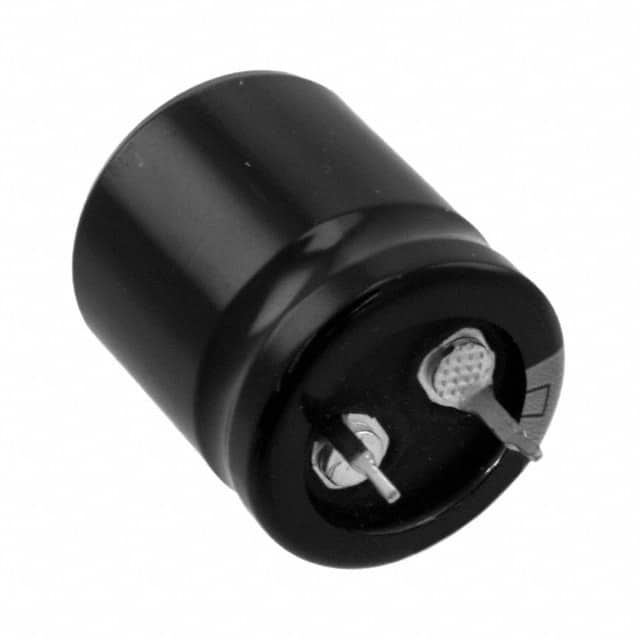

The Panasonic ECO-S2DP221BA is an aluminum electrolytic capacitor from the TS-UP series. It offers a capacitance of 220µF with a tolerance of ±20% and a rated voltage of 200V.
This capacitor operates within a temperature range of -40°C to 85°C and has a rated life of 3000 hours at 85°C. It features a low ripple current of 1.04A at 120Hz and a high-frequency ripple current of 1.456A at 100kHz. The equivalent series resistance (ESR) is 829mOhm at 120Hz.
Designed for through-hole mounting, the ECO-S2DP221BA has a radial, can - snap-in package. Its dimensions include a diameter of 22.00mm, a height of 25.00mm, and a lead spacing of 10.00mm. This component is suitable for general-purpose applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
220 µF.
200 V.
±20%.
-40°C to 85°C.
Radial, Can - Snap-In.
1.04 A at 120 Hz and 1.456 A at 100 kHz.
829 mOhm at 120 Hz.
