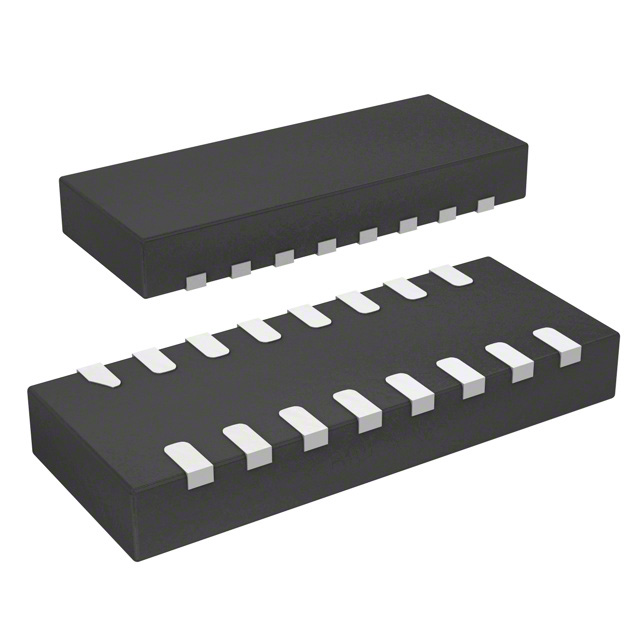

ECMF06-6AM16 6-line signal line common mode filter with ESD protection, rated for 100mA maximum current and 4 Ohm maximum DCR, in a 16-UFDFN surface mount package.
Mfr Part #:

ECMF06-6AM16

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
6-line signal line common mode filter with ESD protection, rated for 100mA maximum current and 4 Ohm maximum DCR, in a 16-UFDFN surface mount package.
✓ Total Stock: 6,005 pcs
$ Price Range: $0.30

ECMF06-6AM16 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
6,005 pcs
On Request
6005 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECMF06-6AM16 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Features
Filter Type
Height (Max)
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

ECMF06-6AM16 Description

Short technical summary and product information.

The ECMF06-6AM16 is a 6-line common mode filter designed for signal line applications. It is rated for a maximum current of 100mA and features a maximum DC resistance of 4 Ohm. The filter operates over a temperature range of -40°C to 85°C. It is provided in a surface mount 16-UFDFN package measuring 3.30mm x 1.35mm x 0.55mm, making it suitable for compact PCB designs. The component includes ESD protection as an integrated feature.

ECMF06-6AM16 Quick Information

Product Type: Common Mode Choke
Canonical Name: ECMF06-6AM16 Common Mode Filter
Subcategory: Signal Line Common Mode Choke

ECMF06-6AM16 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: REACH Unaffected

ECMF06-6AM16 Estimated Pricing

Qty Low High
3,000+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

ECMF06-6AM16 Features

  • 6-line common mode filter for signal lines.
  • Rated for 100mA maximum current.
  • Low DCR of 4 Ohm maximum.
  • Surface mount 16-UFDFN package.
  • Includes ESD protection feature.

ECMF06-6AM16 Applications

  • Ideal for signal line common mode noise filtering.
  • Used in portable electronic devices.
  • Suitable for compact PCB designs.
  • Protects against electrostatic discharge.
  • For use in data line filtering applications.

ECMF06-6AM16 FAQs

8 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40°C to 85°C

What is the package type?

16-UFDFN surface mount package

Is the component RoHS compliant?

RoHS3 Compliant (unverified)

How many lines does this filter have?

6 lines

What is the maximum current rating?

100mA

What is the maximum DC resistance?

4 Ohm

What is the mounting type?

Surface Mount

What protection features does it have?

ESD protection
