| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

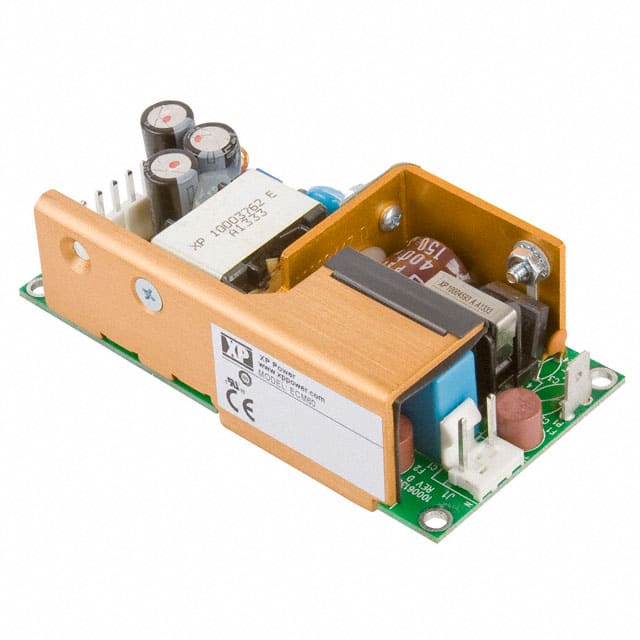

The XP Power ECM60US07 is a high-density, 60-watt AC-DC power supply with a single 5VDC output. It is part of the ECM series, known for its small footprint, measuring 101.6 mm x 50.8 mm x 30.5 mm. This open-frame converter operates with a universal AC input range of 90-264 VAC and offers an efficiency of up to 80%.
Designed for versatility, the ECM60US07 meets EN55032 Level B conducted emissions standards and is suitable for industrial, IT, and medical applications. It provides comprehensive protection features including overvoltage, overload, and short circuit protection. The operating temperature range is 0°C to 70°C, with derating required at higher temperatures.
Key electrical specifications include a maximum output current of 8.6A, an output voltage adjustable by ±10%, and an isolation voltage of 4000 VAC input to output. The unit is chassis mountable and features adjustable output and universal input capabilities.
The output voltage is 5 VDC, adjustable by ±10%.
The maximum output current is 8.6 A.
The universal AC input voltage range is 90-264 VAC.
The operating temperature range is 0°C to 70°C.
The dimensions are 101.6mm x 50.8mm x 30.5mm.
It supports chassis mount.
