| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

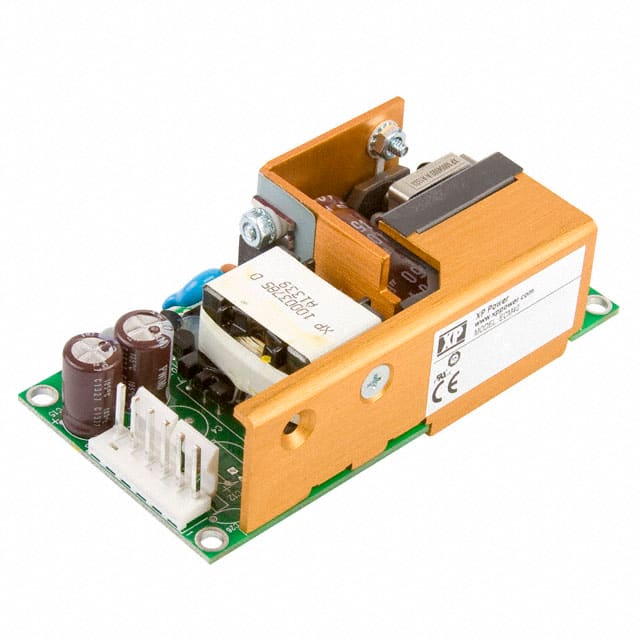

The XP Power ECM40US33 is a 40W AC-DC converter designed for industrial, IT, and medical applications. It offers a single 33V output with adjustable trim and meets EN55032 Level B conducted emissions standards.
This converter operates with a universal AC input range of 90-264 VAC and boasts an efficiency of up to 85%. Its compact dimensions of 4.00" x 2.00" x 1.20" make it suitable for space-constrained designs. The ECM40US33 includes comprehensive protection features such as overvoltage, overload, and short circuit protection.
Key specifications include a 4 kV isolation voltage, a wide operating temperature range of 0°C to 70°C with derating, and low leakage currents. It is approved by cUL and complies with standards like IEC62368-1. The open frame, chassis mount design facilitates integration into various systems.
The ECM40US33 has a nominal output voltage of 33V DC.
The ECM40US33 is rated for 40W of output power.
The ECM40US33 accepts a universal AC input voltage range of 90-264 VAC.
The efficiency of the ECM40US33 is up to 85% for single output versions.
The ECM40US33 measures 101.6mm x 50.8mm x 30.5mm (4.00" x 2.00" x 1.20").
The ECM40US33 operates from 0°C to 50°C at full power, and up to 70°C with derating.
The ECM40US33 is suitable for ITE (Commercial) and Medical applications.
