Mfr Part #:

ECM10MMMD

Name: ECM10MMMD
Brand: Sullins Connector Solutions
SKU: ECM10MMMD

Description:

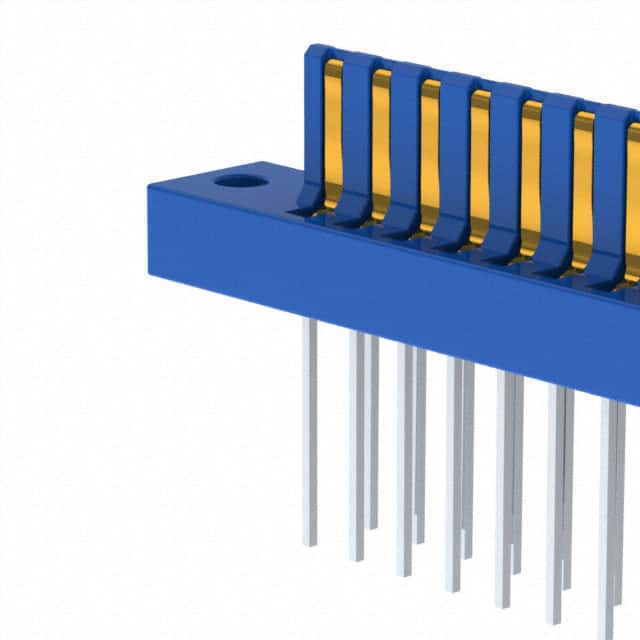

CONN CARDEDGE MALE 20POS 0.156

Stock on Request

ECM10MMMD Description

Short technical summary and product information.

CONN CARDEDGE MALE 20POS 0.156

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Fits Female Edgecards
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Phosphor Bronze
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Male
Mounting Type	Through Hole
Number of Positions	10
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.156" (3.96mm)
Read Out	Dual
Termination	Wire Wrap
