| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

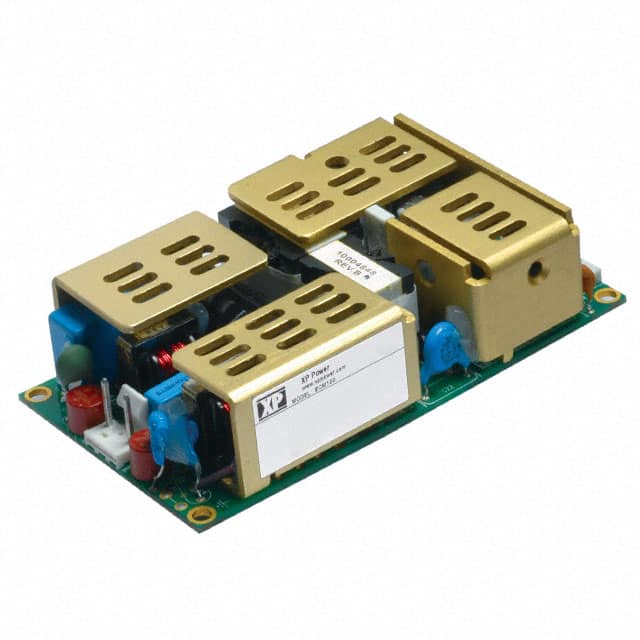

The XP Power ECM100UD22 is an 80W AC-DC converter designed for industrial and medical applications. It offers a 15V output voltage and a universal AC input range of 90-264 VAC.
This open-frame converter has a compact footprint with dimensions of 114.3mm x 63.5mm x 30.5mm. It operates efficiently with a typical efficiency of 80% and features a wide operating temperature range from 0°C to 70°C with derating.
Key electrical specifications include a maximum input current of 1.38A at 90 VAC, a power factor of 0.62 at 230 VAC, and comprehensive protection against overvoltage, overload, and short circuits. It meets EN55032 Level B conducted emissions standards and is compliant with IEC60601-1.
The ECM100UD22 is suitable for chassis mounting and is approved by CB and CE agencies. It is designed for applications requiring reliable power conversion in demanding environments.
The ECM100UD22 provides a 15V DC output voltage.
The ECM100UD22 delivers 80W of output power, with 100W available with forced air cooling.
The operating temperature range is 0°C to 70°C, with derating required at higher temperatures.
The dimensions are 114.3mm in length, 63.5mm in width, and 30.5mm in height.
The unit accepts a universal input voltage range of 90 to 264 VAC.
Yes, it meets EN55032 Level B conducted emissions and is approved by CB and CE agencies, compliant with IEC60601-1 and 62368-1.
