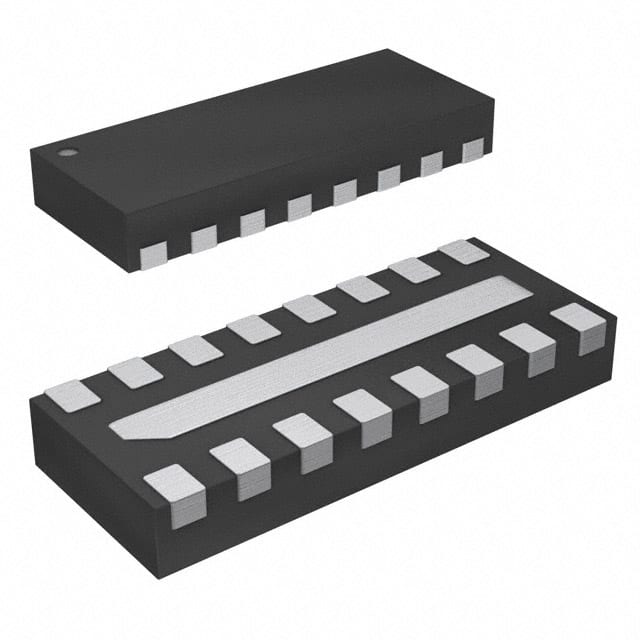

The ECLAMP2398P.TCT from Semtech is a low pass LC (Pi) filter array with integrated TVS diodes for ESD protection. It contains 8 identical filter channels, each providing a 5th order response with typical inductance of 19nH and capacitance of 12pF.
This device achieves a minimum attenuation of 30dB from 800MHz to 2.7GHz, making it suitable for suppressing unwanted EMI/RFI signals. The nominal cutoff frequency is 150MHz. ESD protection is rated at ±15kV air discharge and ±8kV contact discharge per IEC 61000-4-2 level 4.
The filter is housed in a 16-pin SLP4016P16 package (16-UFDFN Exposed Pad) measuring 4.0 x 1.6 x 0.58mm with a lead pitch of 0.5mm and NiPd lead finish. It is designed for surface mount assembly and is RoHS3 compliant. The operating temperature range is -40°C to 85°C.
Typical applications include color LCD protection and camera line filtering in cellular phones and other portable devices where space is limited.
