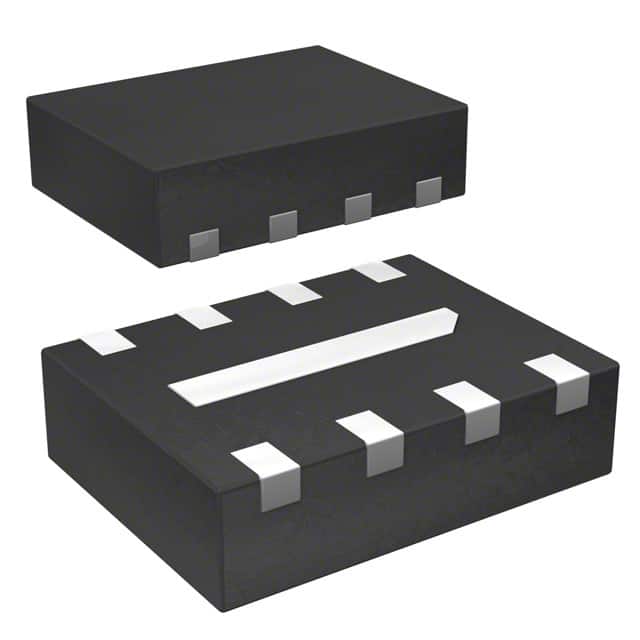

The ECLAMP2384K.TCT from Semtech is a 4-channel low pass EMI filter employing an RC (Pi) topology. It provides a minimum attenuation of 30dB across the 800MHz to 2.7GHz frequency range, making it suitable for suppressing high-frequency noise on data lines.
Each channel features 200 Ohm series resistance and 12pF shunt capacitance. The filter includes ESD protection for enhanced robustness.
The device is designed for surface mount assembly in an 8-UFDFN exposed pad package, measuring 1.70mm x 1.30mm x 0.55mm. It operates over a temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.92 | $0.92 |
| 10+ | $0.75 | $0.75 |
| 25+ | $0.69 | $0.69 |
| 50+ | $0.65 | $0.65 |
| 100+ | $0.61 | $0.61 |
| 250+ | $0.56 | $0.56 |
| 500+ | $0.53 | $0.53 |
| 1,000+ | $0.50 | $0.50 |
| 3,000+ | $0.45 | $0.45 |
| 6,000+ | $0.42 | $0.42 |
| 9,000+ | $0.41 | $0.41 |
| 15,000+ | $0.39 | $0.39 |
| 21,000+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a 2nd order low pass RC (Pi) filter.
It has 4 independent filter channels.
Each channel has 200 Ohm resistance and 12pF capacitance.
Minimum 30dB attenuation from 800MHz to 2.7GHz.
-40°C to +85°C.
Surface mount in an 8-UFDFN exposed pad package.
Yes, it is RoHS3 compliant (unverified).
