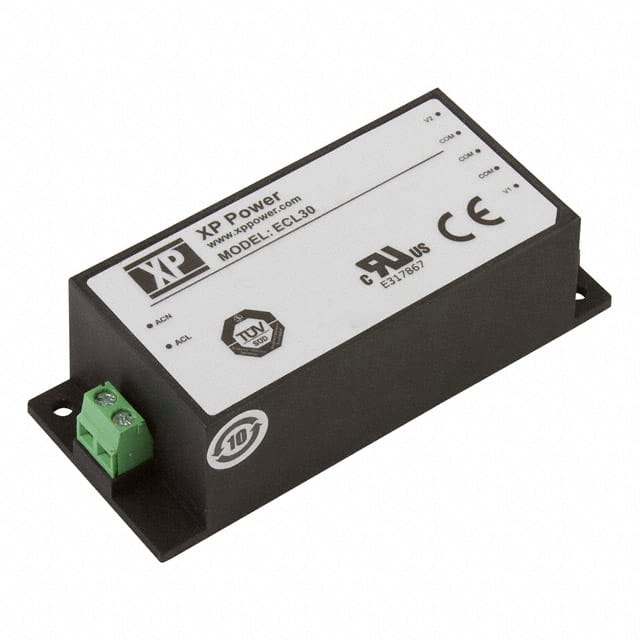

The XP Power ECL30UD01-S is a 30-watt AC-DC power supply designed for industrial and commercial applications. This converter features a chassis mountable, enclosed form factor and provides a dual output of -12V. It accepts a wide input voltage range of 85-264 VAC and boasts an efficiency of 84%.
Key electrical specifications include a maximum input current of 0.8A at 230 VAC, a startup delay of 3 seconds maximum, and a hold-up time of 12 ms typical. The unit offers line regulation of ±0.9% maximum for the second output and load regulation of 1% maximum. Overload protection is rated at 140-200% of total power, and it includes hiccup mode short circuit protection.
With an operating temperature range of -20°C to 70°C (with derating), this power supply is suitable for various environmental conditions. Its dimensions are 96.0mm x 40.0mm x 28.5mm. The ECL30UD01-S complies with standard IEC 62368-1.
The ECL30UD01-S provides a -12V output.
The power rating of the ECL30UD01-S is 30W.
The input voltage range is 85-264 VAC.
The operating temperature range is -20°C to 70°C, with derating above +50°C.
The efficiency is 84%.
It is a chassis mount type.
