| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage |

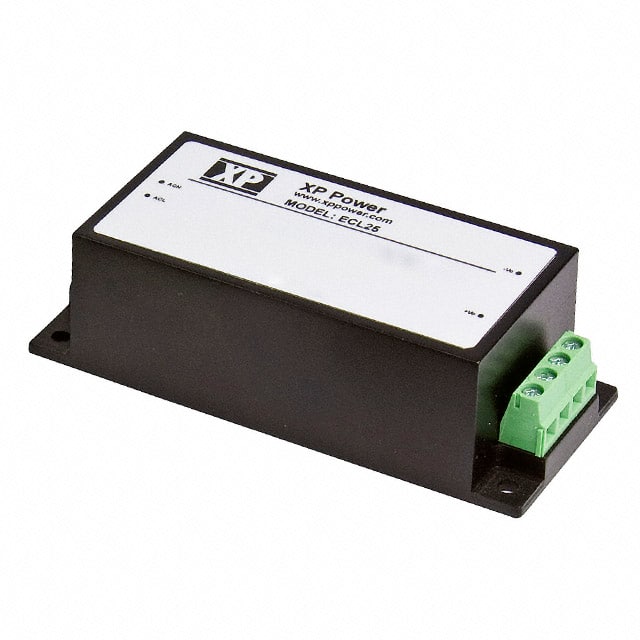

The XP Power ECL25US09-S is a versatile 25W AC/DC power supply designed for various applications. It operates with a universal input voltage range of 85-264 VAC and provides a stable 9V output.
Key electrical specifications include an efficiency of 80%, a maximum input current of 0.4A at 230 VAC, and a power factor compliant with EN 61000-3-2 class A. The converter offers robust protection features, including overvoltage, overload, and short circuit protection in a hiccup mode.
Designed for ease of integration, this unit features a chassis mount form factor. It operates reliably within an ambient temperature range of -20°C to 70°C, with derating applied above 50°C. The dimensions are 96.0mm x 40.0mm x 28.5mm.
This power supply is suitable for ITE (Commercial) applications and meets safety standards such as 62368-1. It offers a 3-year warranty.
85-264 VAC (also 120-370 VDC).
9V.
-20°C to 70°C with derating above 50°C.
Enclosed chassis mount.
2.8A.
80%.
Overvoltage protection (115-140% Vnom), overload protection (140-200% of total power), and short circuit hiccup protection.
