| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

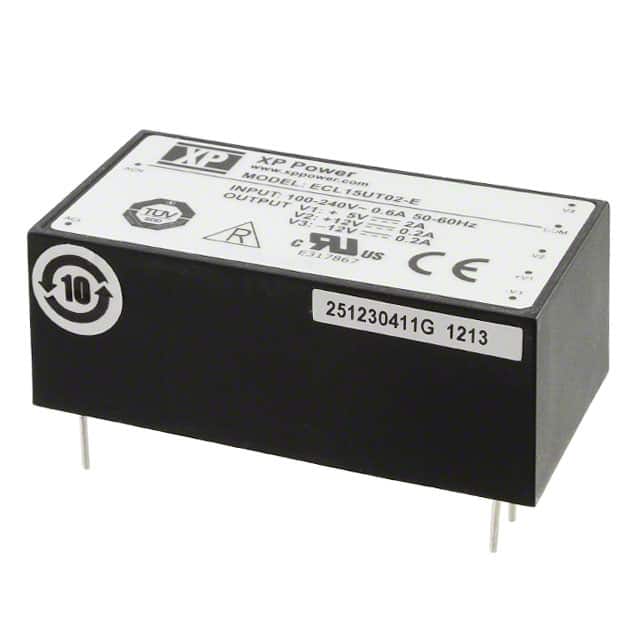

The XP Power ECL15UT02-E is a versatile AC/DC converter designed for various applications. It delivers a total power of 15W and features a triple output configuration providing +5V, +12V, and -12V.
This converter operates with a wide input voltage range of 85-264 VAC and boasts an efficiency of 81%. Key electrical specifications include a startup delay of 3 seconds maximum, a hold-up time of 12 ms typical for multiple outputs, and line regulation of ±0.5% maximum for the primary output.
Designed for robust performance, it includes overvoltage protection, overload protection, and short circuit protection in a hiccup mode. The operating temperature range is -20°C to 70°C, with derating applied above 50°C. Cooling is achieved through natural convection.
The ECL15UT02-E is housed in a 7-DIP Module package and is designed for Through Hole mounting. It meets safety standards including CSA, cUL, EN, IEC, and UL, and is compliant with standard 62368-1.
The XP Power ECL15UT02-E provides three outputs: +5V, +12V, and -12V.
The ECL15UT02-E converter has a power rating of 15 Watts.
The input voltage range for the ECL15UT02-E is 85-264 VAC.
The efficiency of the XP Power ECL15UT02-E is 81%.
The operating temperature range for this AC/DC converter is -20°C to 70°C.
The ECL15UT02-E is designed for Through Hole mounting.
The ECL15UT02-E meets CSA, cUL, EN, IEC, and UL standards, and is compliant with standard 62368-1.
