| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage |

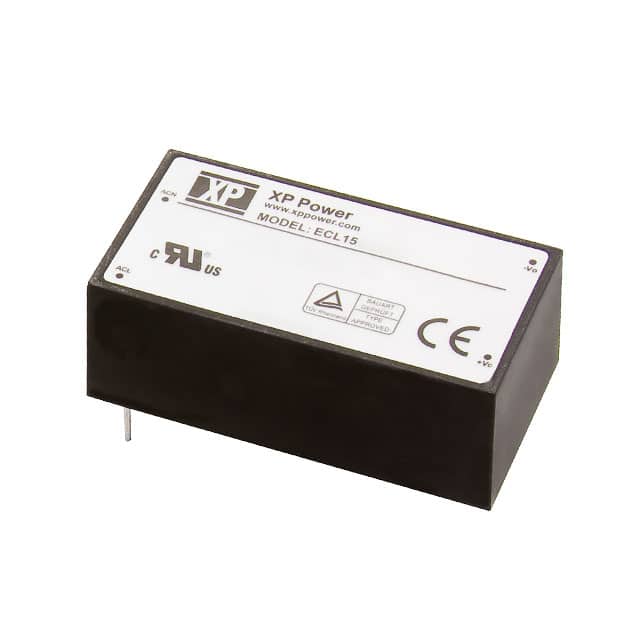

The XP Power ECL15US48-E is part of the ECL Series of AC-DC converters, designed for reliable power conversion in various applications. This model delivers 15 watts of power with a nominal output voltage of 48V.
Key electrical specifications include a wide input voltage range of 85-264 VAC, ensuring compatibility across different power grids. It operates with an efficiency of 82% and features a low no-load input power of less than 0.3W. The converter includes essential protections such as overvoltage and overload protection, with a trip-and-restart (hiccup mode) for short circuits.
Designed for easy integration, the ECL15US48-E features a through-hole mounting type and comes in a 4-DIP module package. Its operating temperature range is -20°C to 70°C with derating, making it suitable for a variety of environmental conditions. The dimensions are 65.0mm x 33.3mm x 24.4mm.
The nominal output voltage is 48V.
The input voltage range is 85-264 VAC.
The power rating is 15W.
It operates from -20°C to 70°C, with derating above 50°C.
It is mounted using the through-hole method.
The efficiency is 82%.
