| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

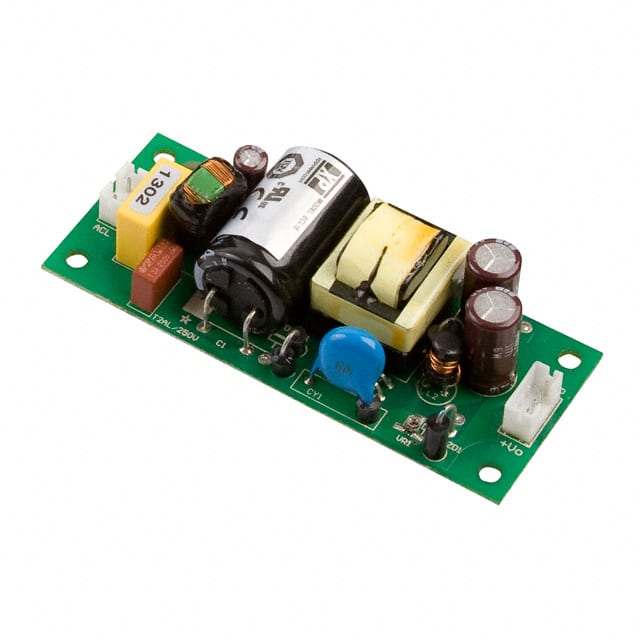

The XP Power ECL15US05-T is an open frame AC/DC converter delivering 15W of power with a single 5V output. It operates with a universal input voltage range of 85-264 VAC and features a typical efficiency of 78%.
Designed for chassis mounting, this converter offers features such as adjustable output, DC input capability, and universal input. It has a compact size with dimensions of 78.7mm x 31.7mm x 20.0mm and is convection-cooled.
Key electrical specifications include a start-up delay of 3 seconds maximum, a hold-up time of 16 ms typical, and overload protection ranging from 120-150% of total power. It also includes overvoltage protection and short circuit protection in a hiccup mode.
The operating temperature range is -20°C to 70°C with derating. The series is compliant with EN 61000-3-2 class A for power factor and meets the 62368-1 standard.
85-264 VAC (120-370 VDC).
Open frame, chassis mount.
-20°C to 70°C with derating above 50°C.
5V.
78% typical.
3000 VAC.
Overvoltage protection (115-140% Vnom), overload protection (120-150% of total power), and short circuit protection (hiccup mode).
