| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
361 pcs
|
361 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage |

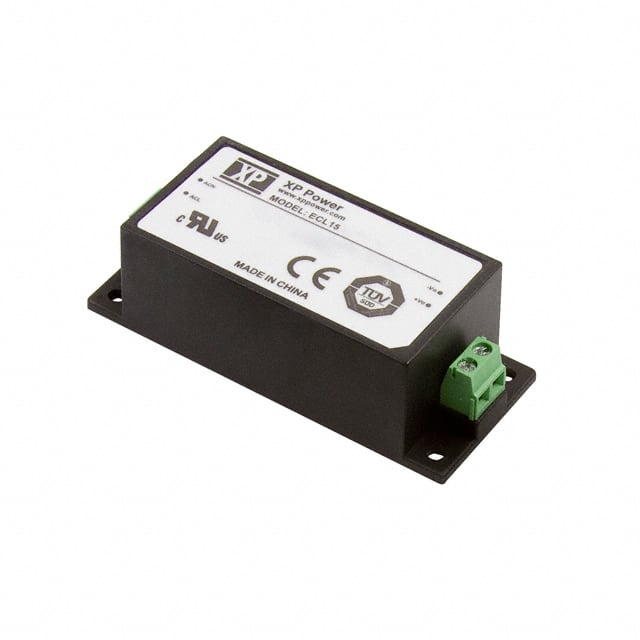

The XP Power ECL15US05-S is an AC/DC converter designed for various power supply applications. It delivers a 5V output and a total power of 15W.
Key specifications include an input voltage range of 85-264 VAC (120-370 VDC) and an input frequency of 47-63 Hz. The converter boasts an ultra-compact size and is available in open frame PCB mount or chassis mount versions, as well as encapsulated PCB mount options. It features <0.3W no load input power and a 3-year warranty.
Electrical characteristics include an initial set accuracy of ±1% for output 1 and ±5% for output 2. Line regulation is ±0.5% max for single output versions and output 1 of multiple output versions, while load regulation is 1% max for single output versions. The device offers overvoltage protection.
This series is suitable for a wide range of applications requiring reliable power conversion in a compact form factor.
The output voltage is 5V.
The maximum output power is 15W.
The input voltage range is 85-264 VAC (120-370 VDC).
The input frequency range is 47-63 Hz.
The no-load input power is less than 0.3 W.
The warranty period is 3 years.
The initial set accuracy for output 1 is ±1%.
