| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight |

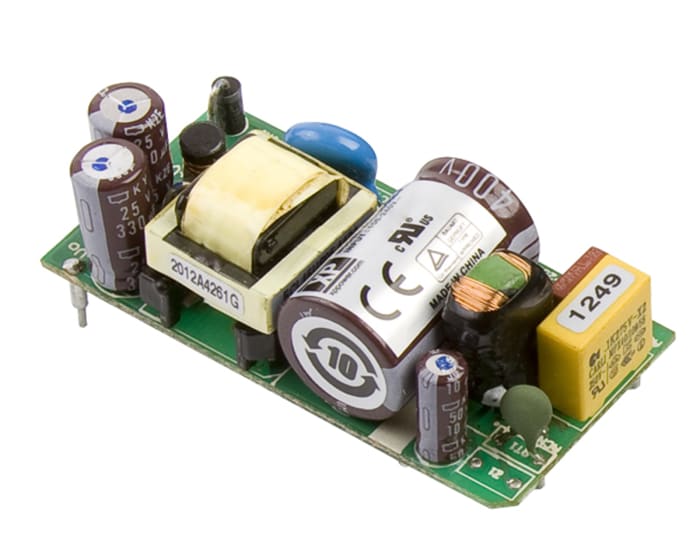

The XP Power ECL15UD03-P is an open-frame AC-DC converter designed for various applications. It delivers 15W of power with a single -12V output and a secondary output.
Key electrical specifications include an input voltage range of 85-264 VAC, an efficiency of 81%, and a low no-load input power of less than 0.3W. The converter offers features such as ±5% output voltage trim on the primary output and a maximum load regulation of 1% for single outputs.
This model is suitable for ITE (Commercial) applications and features through-hole mounting. Its compact dimensions and convection cooling make it adaptable for integration into various systems. The operating temperature range is -20°C to 70°C with derating.
The ECL15UD03-P complies with several standards including CSA, cUL, EN, IEC, UL, and EN 62368-1, ensuring reliability and safety in its intended applications.
85-264 VAC.
6-DIP Module.
-20°C to 70°C with derating above 50°C.
Output 1: 1.5A, Output 2: 0.625A.
81%.
3000 VAC input to output.
UL 60950-1, IEC 60950-1, EN 55022, and EN 61000 series compliance.
