| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

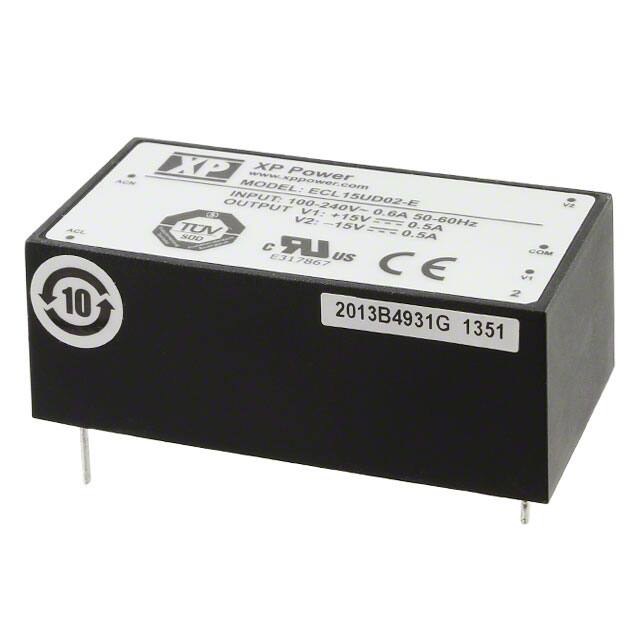

The XP Power ECL15UD02-E is a 15W AC-DC power supply designed for board mounting. It offers a universal input voltage range of 85-264 VAC, making it suitable for global applications. This model provides dual outputs, each rated at -15V and 500mA.
Key electrical specifications include a high efficiency of 82% and a low no-load input power of less than 0.3W. The converter features robust input protection with a T2A/250VAC fuse and a switching frequency of 70 kHz typical. It also includes overvoltage and overload protection, with short circuit protection in a hiccup mode.
Designed for Through Hole mounting, the ECL15UD02-E has a compact size with dimensions of 65.0mm x 33.3mm x 24.4mm. The operating temperature range is -20°C to +70°C with derating, and it is convection-cooled. The unit is certified by CSA, cUL, EN, IEC, and UL, and complies with standard 62368-1.
85-264VAC, with 120-370VDC also accepted.
Dual +/-15V outputs rated at 500mA each, for a total output power of 15W.
5-DIP module with through-hole mounting.
-20°C to +70°C, with linear derating from 100% load at +50°C to 50% load at +70°C.
3000VAC input-to-output isolation.
Short-circuit protection with trip and restart (hiccup mode), overload protection at 140-200% of total power, and overvoltage protection at 115-140% of nominal output voltage.
Less than 0.3W.
