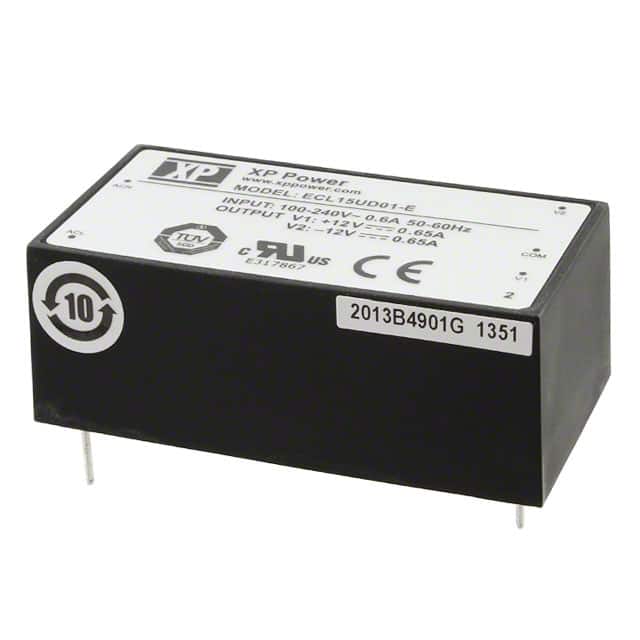

The XP Power ECL15UD01-E is a 15W AC-DC converter from the ECL15 Series, designed for ITE (Commercial) applications. It offers a universal input voltage range of 85-264 VAC and provides dual outputs of +/-12V, each with a current rating of 650mA.
This converter features Through Hole mounting and a 5-DIP Module package. Key electrical specifications include an efficiency of 82%, a power density of 5.30 W/in³, and isolation of 3000 VAC between input and output. It operates within a temperature range of -20°C to 70°C with derating and is convection-cooled.
Designed for reliability, it has a typical MTBF of over 400 kHrs. The unit complies with standard 62368-1 and includes features such as universal input and overvoltage/overload protection. Its compact size and robust design make it suitable for various industrial technology applications.
85-264 VAC or 120-370 VDC.
Dual outputs: +/-12V at 650mA each, total 15W.
5-DIP Module, through-hole mounting.
-20°C to 70°C with derating.
3000 VAC between input and output.
82%.
>400 kHrs at 25°C, per MIL-HDBK-217F.
