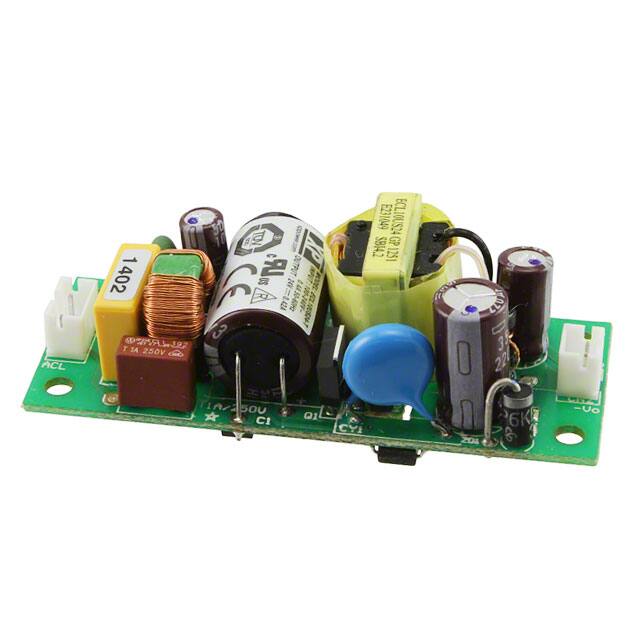

The XP Power ECL10US24-T is an open frame AC/DC converter designed for chassis mounting, delivering 10W of power with a 24V output voltage. It operates with a wide input voltage range of 85-264 VAC and features an efficiency of 82%.
Key electrical specifications include a maximum input current of 0.2 A at 230 VAC, a no-load input power of less than 0.3W, and a switching frequency of 70 kHz typical. The converter offers features such as adjustable output, DC input capability, and universal input. It provides robust protection with overvoltage, overload, and short circuit protection in a hiccup mode.
Designed for reliability, the ECL10US24-T has an MTBF of over 450,000 hours at 25°C. It operates within an ambient temperature range of -20°C to 70°C with derating. The unit measures 87.9mm in length, 34.6mm in width, and 22.4mm in height, with convection cooling.
This converter is compliant with standard 62368-1 and is suitable for ITE (Commercial) applications. It is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
