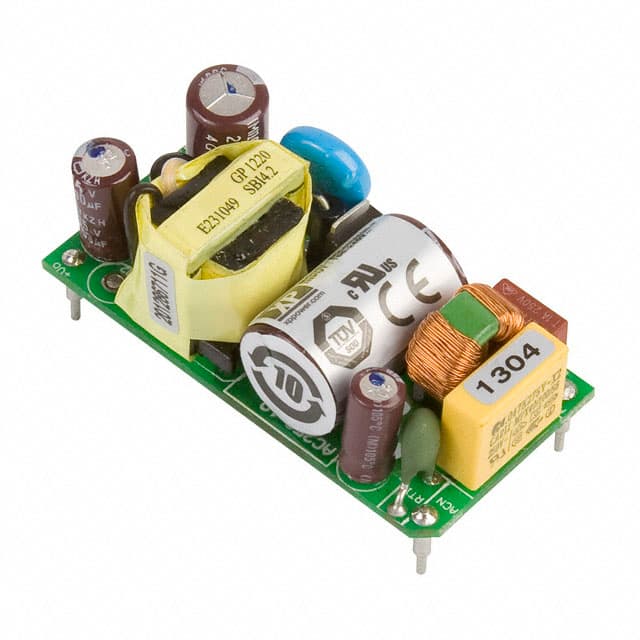

The XP Power ECL10US24-P is an AC-DC converter from the ECL series, delivering a single 24V output at 420mA (10W). It is housed in an open frame, through-hole mount 4-DIP module measuring 50.8mm x 25.4mm x 22.9mm.
Electrical specifications include a universal input range of 85-264 VAC at 47-63 Hz, with an input current of 0.2 A rms. Efficiency is 82%. Line regulation is ±0.5%, load regulation 1%, and ripple & noise 200 mV pk-pk. Protection features include overvoltage (115-140% Vnom), overload (120-150% of total power), and short circuit hiccup mode. Input-to-output isolation is 3000 VAC.
The converter operates from -20°C to 70°C with derating, is convection cooled, and has an MTBF of >450 kHrs. It is designed to meet safety standard 62368-1 with approvals from CSA, cUL, EN, IEC, and UL. RoHS and REACH compliance is listed but unverified.
Suitable for commercial ITE (Information Technology Equipment) applications, the ECL10US24-P requires no minimum load and offers a hold-up time of 16 ms typical.
85-264 VAC.
4-DIP Module, through-hole mount.
-20°C to 70°C with derating.
Listed as RoHS3 Compliant, but this has not been verified.
24V at 420mA (10W).
Overvoltage (115-140% Vnom), overload (120-150%), short circuit hiccup mode.
3000 VAC input to output.
