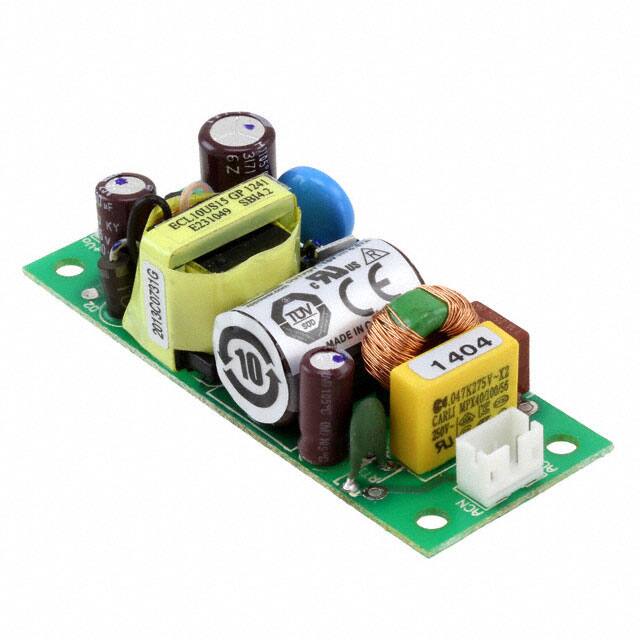

The XP Power ECL10US15-T is an open-frame AC-DC converter designed for ITE (Commercial) applications. It provides a single 15V output with a maximum power of 10W and a current rating of 670 mA.
This converter operates with a wide input voltage range of 85-264 VAC and features a low no-load input power of less than 0.3W. Key electrical specifications include an efficiency of 80%, a typical switching frequency of 70 kHz, and a hold-up time of 16 ms. It offers adjustable output voltage with ±5% trim and includes protections such as overvoltage, overload, and short circuit.
The unit is designed for chassis mounting and has compact dimensions of 87.9mm x 34.6mm x 22.4mm. It operates within an ambient temperature range of -20°C to 70°C with derating. The ECL10US15-T meets safety standards with 3000 VAC isolation and is compliant with EN 62368-1.
The output voltage is 15V.
The maximum output current is 670 mA.
The input voltage range is 85-264 VAC.
It supports chassis mount.
The operating temperature range is -20°C to 70°C.
The efficiency is 80%.
