| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

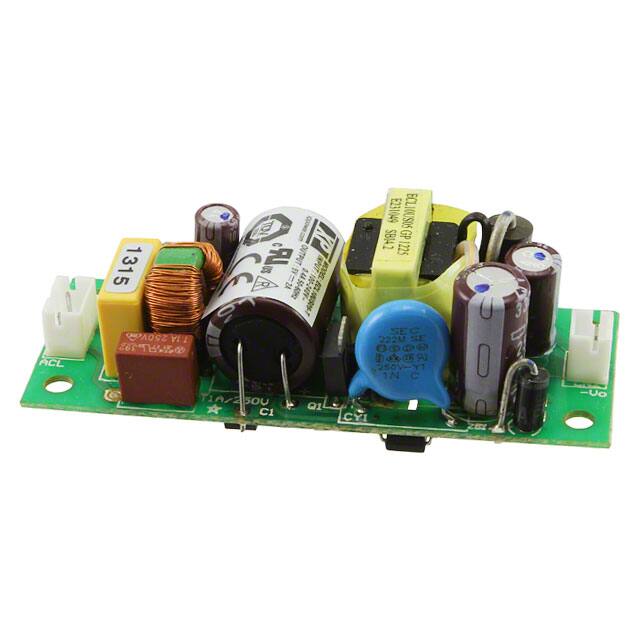

The XP Power ECL10US05-T is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers 10W of power with a single 5V output.
Key electrical specifications include a wide input voltage range of 85-264 VAC and an efficiency of 75%. The converter offers features such as adjustable output, DC input capability, and universal input. It has a maximum input current of 0.2 A rms at 230 VAC and an inrush current of 20 A at 115 VAC.
This model operates within a temperature range of -20°C to 70°C with derating. It is designed for chassis mounting and has dimensions of 87.9mm x 34.6mm x 22.4mm. The isolation voltage is rated at 3000 VAC.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The standard number is 62368-1.
The input voltage range is 85-264 VAC (120-370 VDC).
The output voltage is 5V DC.
The typical efficiency is 75%.
The operating temperature range is -20°C to +70°C with linear derating above 50°C.
The converter is chassis mount and open frame type.
Overvoltage protection (115-140% of Vnom), overload protection (120-150% of total power), and short circuit protection (hiccup mode).
The isolation voltage is 3000 VAC input to output.
