| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage |

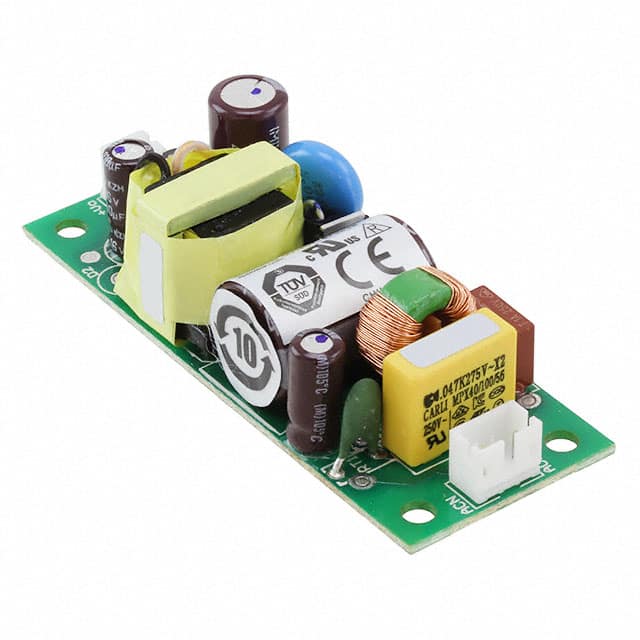

This XP Power ECL05US48-T is an AC/DC converter from the ECL Series, delivering 5W of power. It features an open frame construction suitable for chassis mounting.
The converter accepts a wide input voltage range of 85-264 VAC, making it versatile for global applications. Key electrical specifications include a 48V output voltage, 100 mA output current, and an efficiency of 82%. It offers features such as adjustable output, DC input capability, and universal input.
Designed for reliability, it has an operating temperature range of -20°C to 70°C with derating and boasts a 3000 VAC isolation rating. The compact dimensions are 87.9mm x 34.6mm x 22.4mm.
This model is suitable for ITE (Commercial) applications and complies with standard 62368-1.
85-264 VAC (120-370 VDC).
Open frame chassis mount package.
-20°C to +70°C with derating above +50°C.
82% typical.
3000 VAC input to output.
Yes, hiccup mode trip and restart.
±5% on output 1 only.
