| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

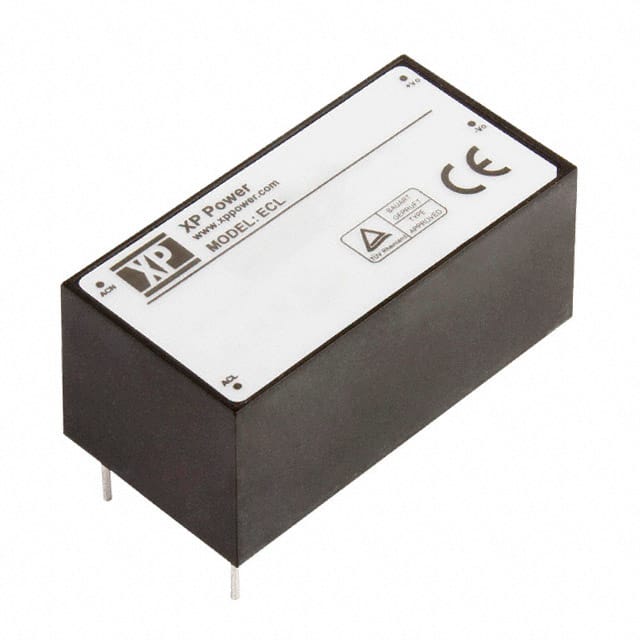

The XP Power ECL05US48-E is a highly efficient AC/DC converter from the ECL series, designed to deliver a regulated 48V output at up to 100 mA (5W). This board-mountable module accepts a universal input voltage range of 85 VAC to 264 VAC, making it suitable for global applications without the need for voltage selection.
Key electrical characteristics include a typical efficiency of 82%, line regulation of ±0.5%, and load regulation of 1%. The converter features built-in protections including overvoltage protection (115-140% of Vnom), overload protection (120-150% of total power), and hiccup mode short circuit protection. Ripple and noise is specified at 200 mV pk-pk (20 MHz bandwidth).
The device comes in a 4-DIP through-hole package measuring 52.3 mm x 27.2 mm x 23.0 mm, offering a power density of 2.25 W/in³. It operates over a temperature range of -20°C to 70°C with derating, and has an isolation voltage of 3000 VAC between input and output. The ECL05US48-E is intended for commercial ITE applications and is supported by a 3-year warranty.
The output voltage is 48V and the output power is 5W (100 mA).
It accepts a universal input of 85-264 VAC.
The operating temperature range is -20°C to 70°C (with derating).
It is a 4-DIP through-hole module.
